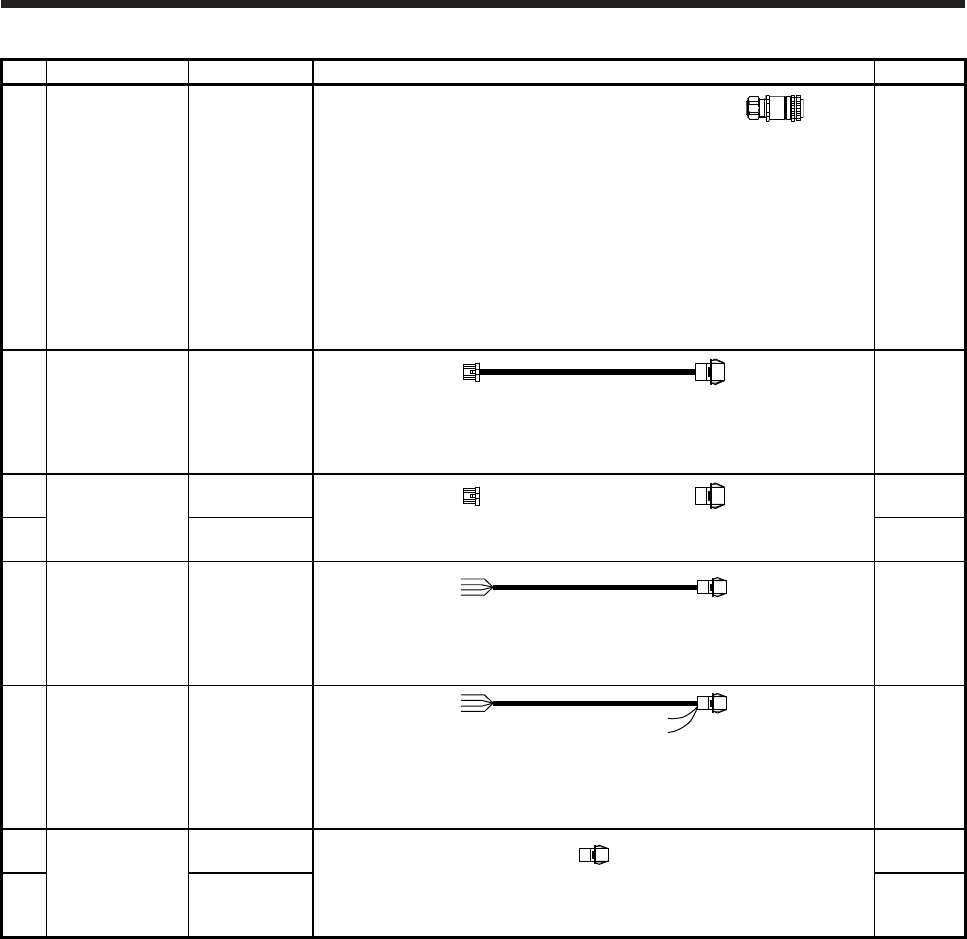

5. WIRING OPTION
5 - 9
No. Name Model Description Remark
43) Cooling fan power
connector set
MR-PWCNF Plug: CE05-6A14S-2SD-D (DDK)
Cable clamp: YSO14-9 to 11 (Daiwa Dengyo)
Applicable cable
Applicable wire size: 0.3 mm
2
to 1.25 mm
2
(AWG 22 to 16)
Cable OD: 8.3 mm to 11.3 mm
HG-JR22K1M(4)
HG-JR30K1M(4)
HG-JR37K1M(4)
HG-JR45K1M4
HG-JR55K1M4
HG-JR15K1(4)
HG-JR20K1(4)
HG-JR25K1(4)
HG-JR30K1(4)
HG-JR37K1(4)
IP67
EN
compliant
44) Encoder cable MR-
J3W03ENCBL
_M-A-H
Cable length:
1/2/5/10/20/30
m
Refer to section 5.2 (8) for details.
Long
bending life
45) Encoder
connector set
MR-
J3W03CN2-2P
Refer to section 5.2 (8) for details.
Quantity: 2
46) MR-
J3W03CN2-20P
Quantity:
20
47) Servo motor
power cable
MR-
J4W03PWCBL
_M-H
Cable length:
1/2/5/10/20/30
m
Refer to section 5.4 for details.
Long
bending life
48) Servo motor
power cable
MR-
J4W03PWBRC
BL_M-H
Cable length:
1/2/5/10/20/30
m
Refer to section 5.4 for details.
Long
bending life
Servo
motor with
an electro-
magnetic
brake
49) Servo motor
power connector
set
MR-
J4W03CNP2-2P
Refer to section 5.4 for details.
Quantity: 2
50) MR-
J4W03CNP2-
20P
Quantity:
20
Note 1. The cable and the connector set may contain different connectors but still usable.
2. For servo motor power cable, MR-PWS3CBL_M-A_-L using shielded cable is also available. For details, contact your local
sales office.
