4. CONNECTION OF SERVO AMPLIFIER AND SERVO MOTOR
4 - 21

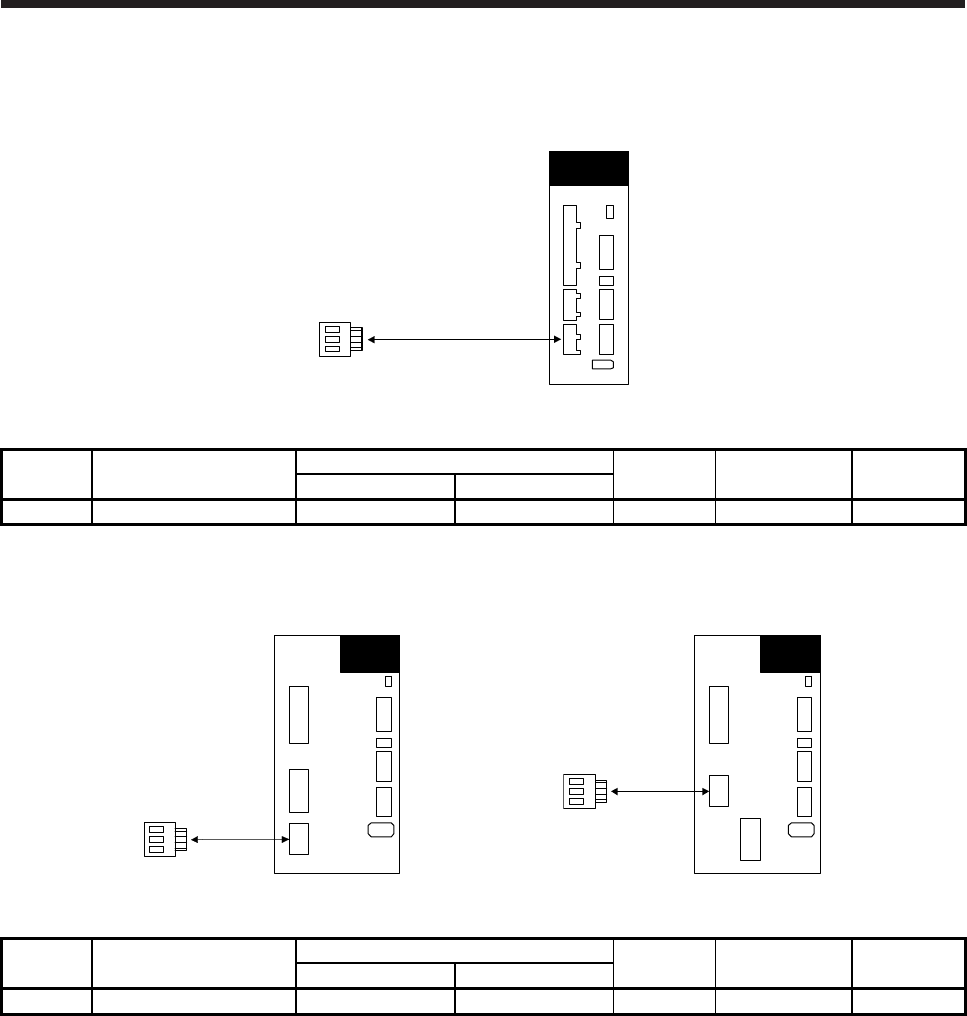

(1) Connector details
(a) Connector A
CNP3
Servo amplifier
Table 4.1 Connector and applicable wire
Connector Receptacle assembly
Applicable wire
Stripped
length [mm]
Open tool Manufacturer
Wire size Insulator OD
CNP3 03JFAT-SAXGDK-H7.5 AWG 18 to 14 3.9 mm or less 9 J-FAT-OT JST
(b) Connector B
MR-J4-200_(-RJ_)
Servo amplifier
CNP3
CNP3
MR-J4-350_(-RJ_)
Servo amplifier
Table 4.2 Connector and applicable wire
Connector Receptacle assembly
Applicable wire
Stripped
length [mm]
Open tool Manufacturer
Wire size Insulator OD
CNP3 03JFAT-SAXGFK-XL AWG 16 to 10 4.7 mm or less 11.5 J-FAT-OT-EXL JST
