4. CONNECTION OF SERVO AMPLIFIER AND SERVO MOTOR
4 - 22

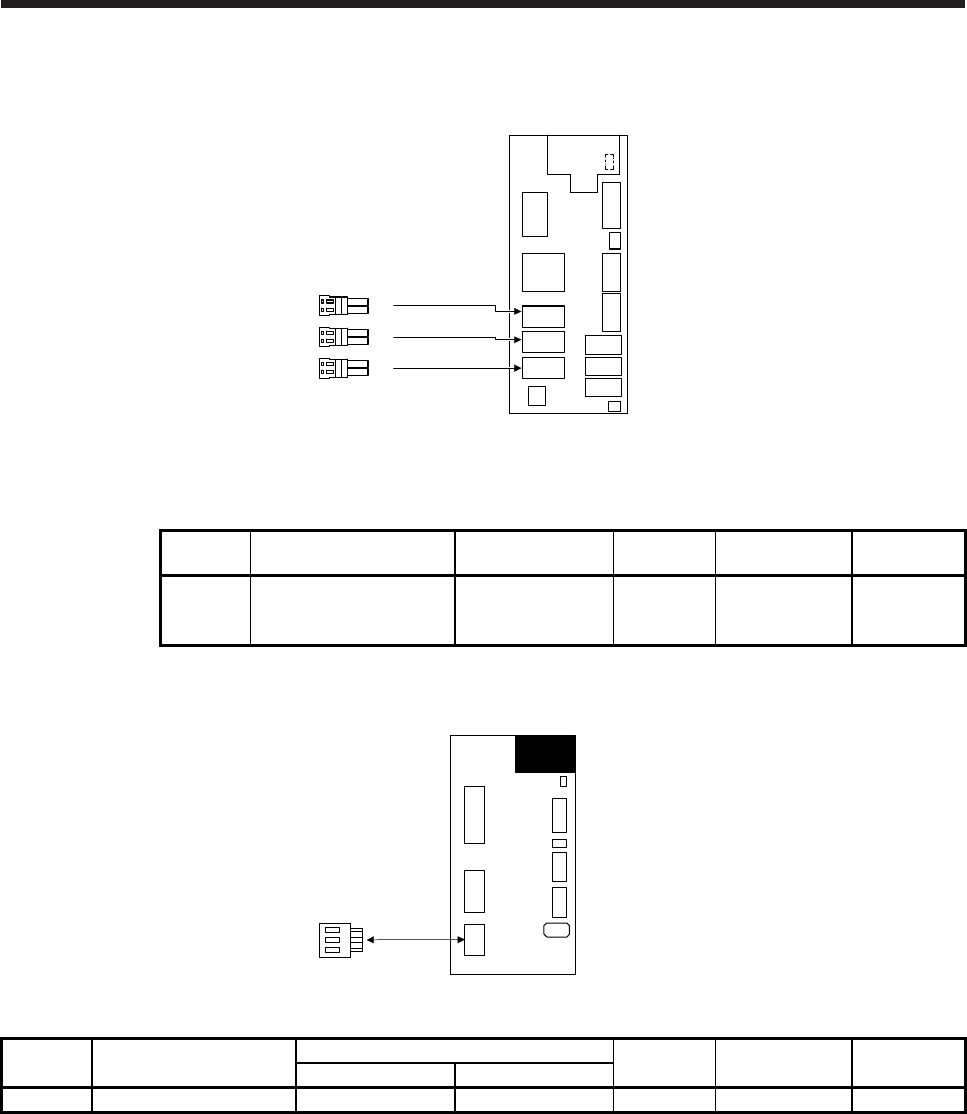

(c) Connector C
MR-J4W_
Servo amplifier
CNP3A
CNP3B
CNP3C (Note)
Note. This figure shows the MR-J4 3-axis servo amplifier.
Table 4.3 Connector and applicable wire
Connector Receptacle assembly Applicable wire size
Stripped
length [mm]
Open tool Manufacturer
CNP3A
CNP3B
CNP3C
04JFAT-SAGG-G-KK AWG 18 to 14 9 J-FAT-OT-EXL JST
(d) Connector D
Servo amplifie
r
CNP3
Table 4.4 Connector and applicable wire
Connector Receptacle assembly
Applicable wire size
Stripped
length [mm]
Open tool Manufacturer
Wire size Insulator OD
CNP3 03JFAT-SAXGDK-HT10.5 AWG 16 to 14 3.9 mm or less 10 J-FAT-OT-XL JST
