4. CONNECTION OF SERVO AMPLIFIER AND SERVO MOTOR
4 - 24
(2) Cable connection procedure
(a) Cable making
Refer to table 4.1 to 4.4 for stripped length of cable insulator. The appropriate stripped length of
cables depends on their type, etc. Set the length considering their status.
Insulato
r
Core
Stripped length

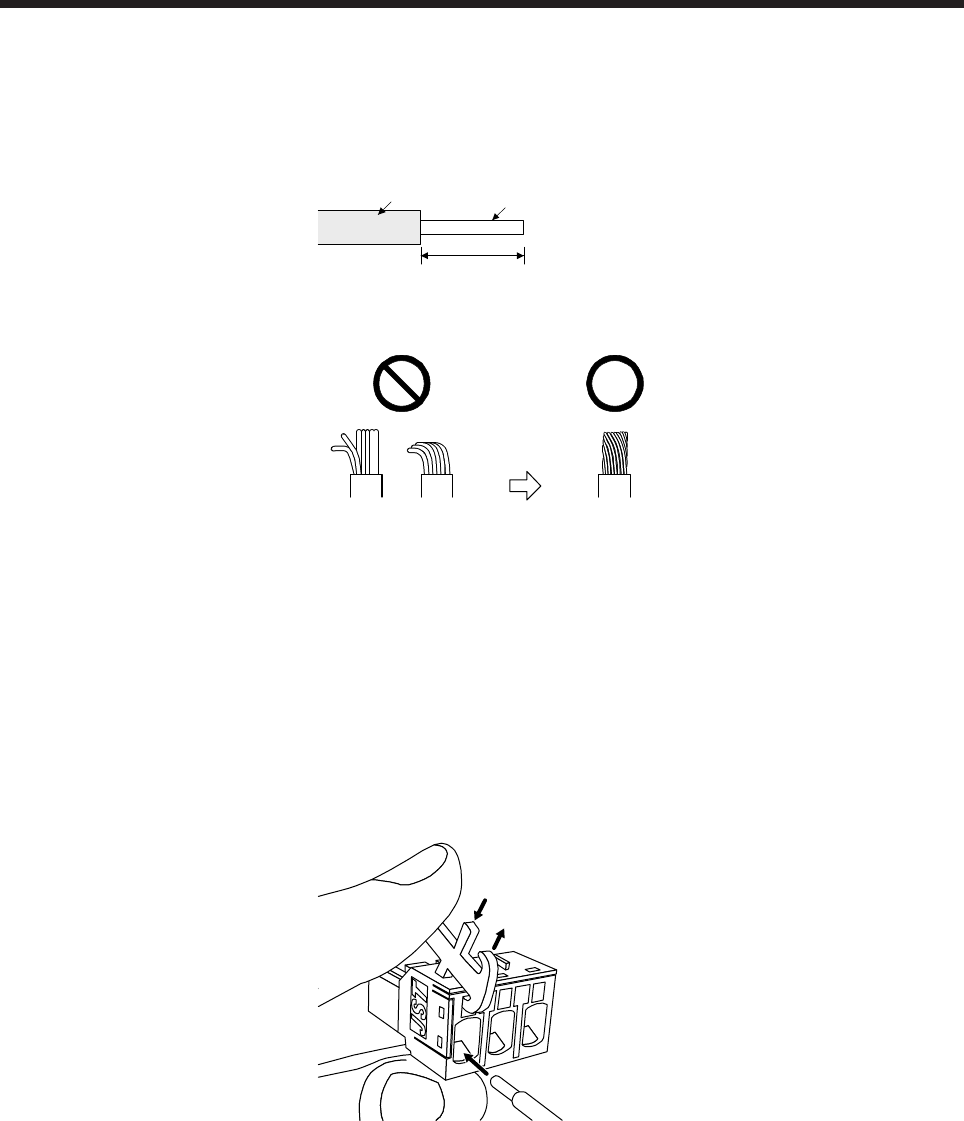

Twist strands slightly and straighten them as follows.
Loose and bent strands Twist and straighten
the strands.
(b) Inserting wire
1) For connectors requiring an open tool (connector A to connector D)
Insert the open tool as follows and push down it to open the spring. While the open tool is pushed
down, insert the stripped wire into the wire insertion hole. Check the insertion depth so that the
cable insulator does not get caught by the spring.
Release the open tool to fix the wire. Pull the wire lightly to confirm that the wire is surely
connected.
The following shows a connection example of the 03JFAT-SAXGFK-XL.
1) Push down the open tool.
3) Release the open tool to fix the wire.
2) Insert the wire.
