Machine Maintenance Procedures 3-25
4. Remove the Bluetooth Module from the lower case.
5. Disconnect the bluetooth cable (B) from the bluetooth module (E) (Figure 3-24).

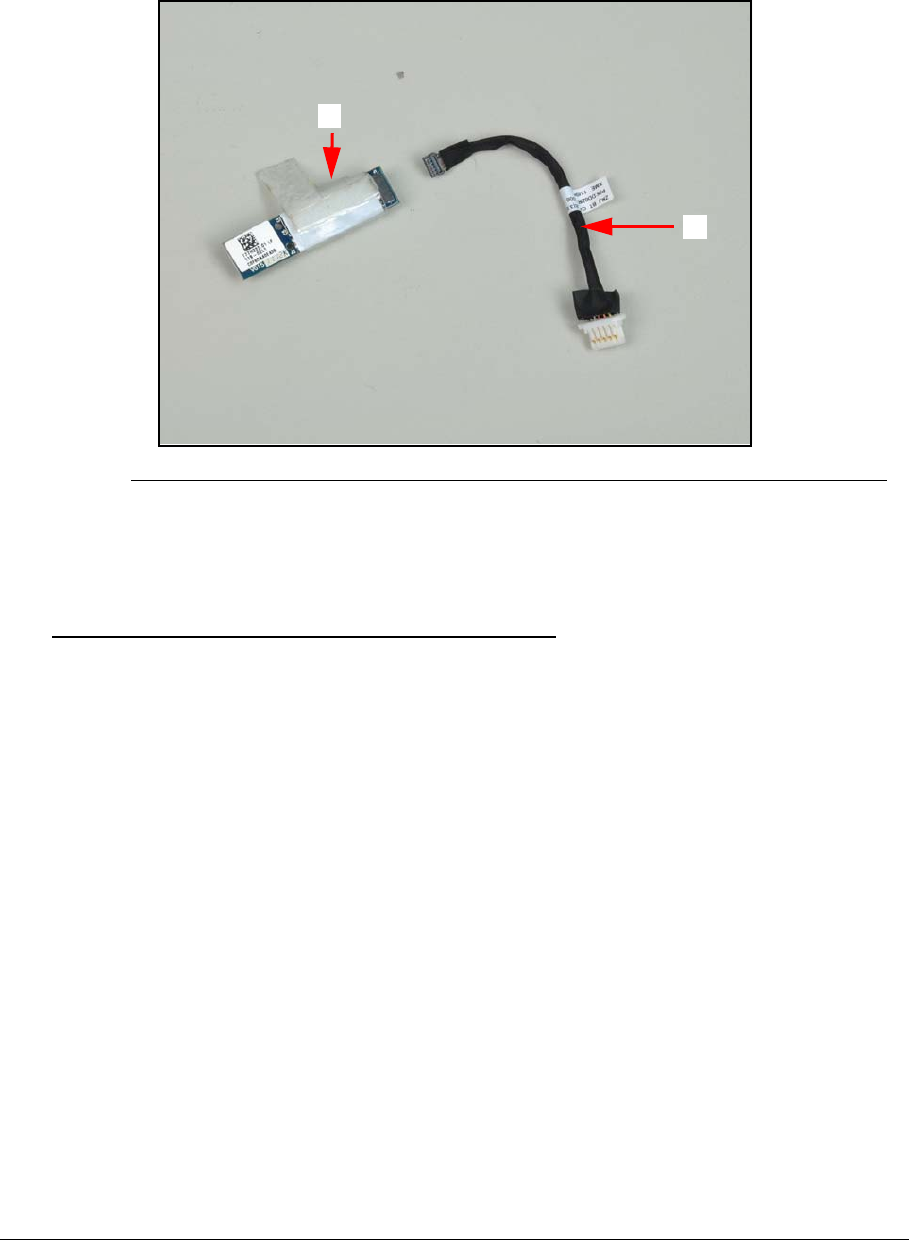

Figure 3-24. Bluetooth Module
Bluetooth Module Installation 0
1. Connect the Bluetooth cable (B) to the bluetooth module (Figure 3-23).
2. Connect the Bluetooth cable (B) to the mainboard connector (C) (Figure 3-22).
3. Install the base cover.
A
B
C
E
B
