Installation Notes for Catalyst 3750-E and Catalyst 3560-E Switch Fan Modules
78-17571-01
Technical Specifications

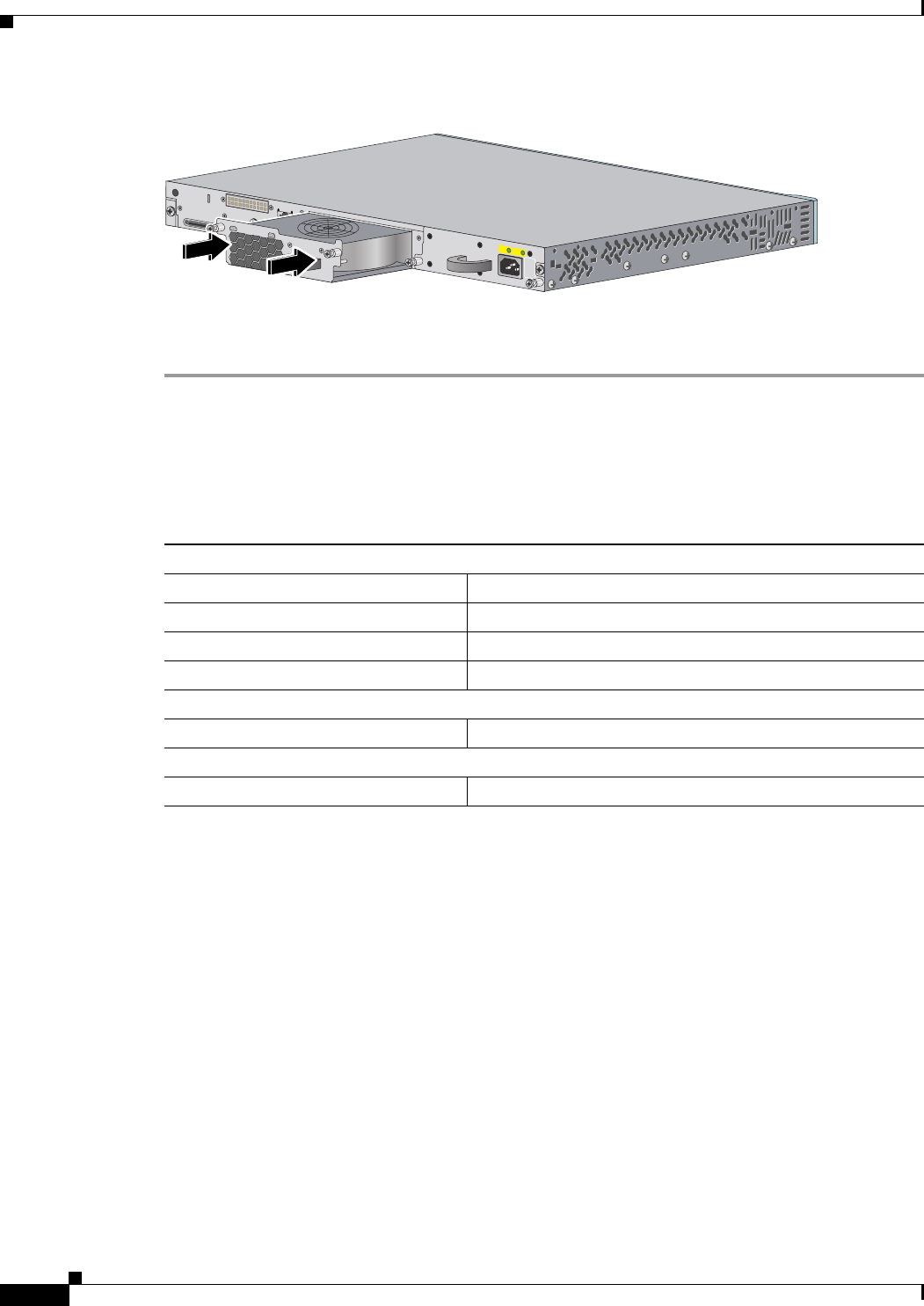

Figure 2 Inserting the Fan Module
Step 4
Align the two captive screws with the screw holes in the switch rear panel. Using a ratcheting torque
screwdriver, torque each screw to 5 lbf-in. (80 ozf-in.).
Technical Specifications
Table 2 Fan Module Environmental and Physical Specifications
Environmental Ranges
Operating temperature 23 to 113° F (–5 to 45° C)
Storage temperature –40 to 158° F (–40 to 70° C)
Relative humidity 10 to 95% (noncondensing)
Altitude Up to 10,000 ft (3049 m)
Physical Specification
Dimensions (H x D x W) 1.68 x 6.8 x 5.74 in. (4.27 x 17.27 x 14.58 cm)
Operating Specification
Airflow 60 cubic feet per minute (CFM)
