Quick Reference Guide 13

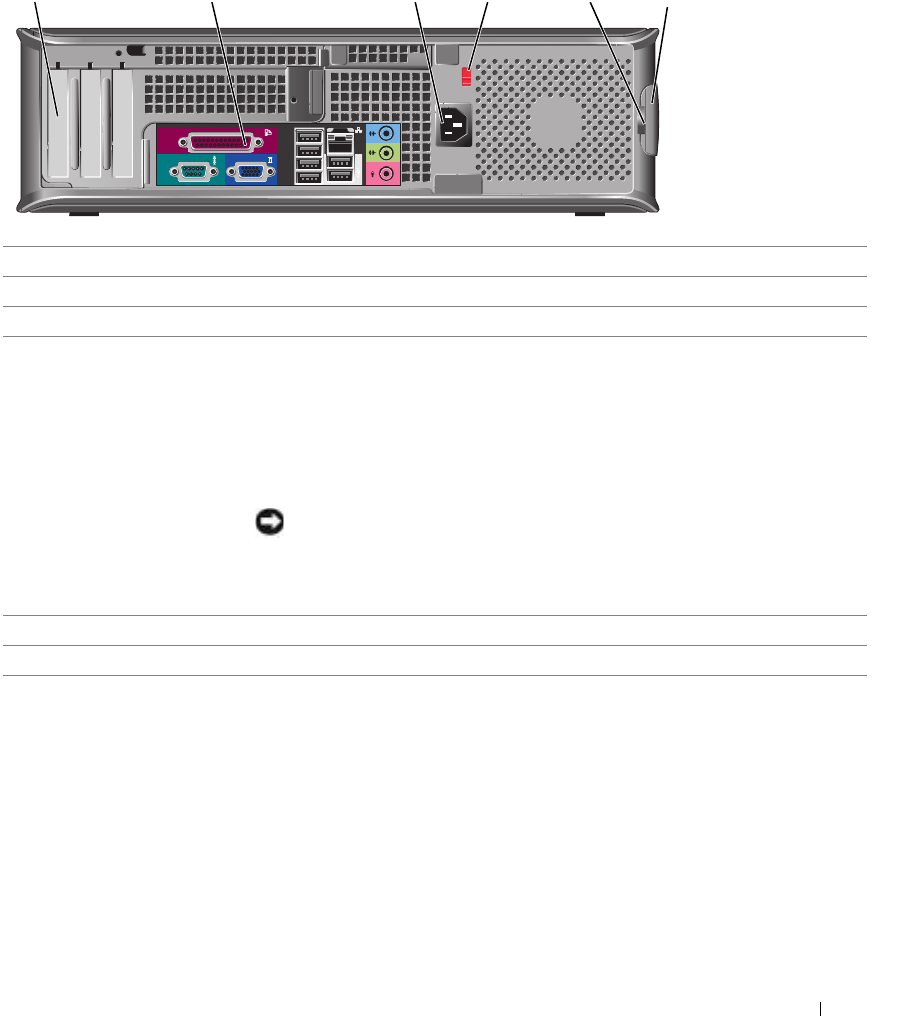

Desktop Computer — Back View
5
1
2 3 4 6
1 card slots You can access connectors for any installed PCI and PCI Express cards.
2 back-panel connectors Plug serial, USB, and other devices into the appropriate connector.
3 power connector Insert the power cable into this connector.
4 voltage selection switch
(may not be available on
certain computers)
Your computer is equipped with either an auto-sensing voltage selector or a
manual voltage-selection switch. Computers with an auto-sensing voltage selector
do not have a voltage selection switch on the back panel and can automatically
detect the correct operating voltage.
To help avoid damaging a computer with a manual voltage-selection switch, set
the switch for the voltage that most closely matches the AC power available in
your location.
NOTICE: In Japan, the voltage selection switch must be set to the 115-V
position even though the AC power available in Japan is 100 V.
Also, ensure that your monitor and attached devices are electrically rated to
operate with the AC power available in your location.
5 padlock ring Insert a padlock to lock the computer cover.
6 cover release latch Use this latch to open the computer cover.
