LC-NB2UW
26

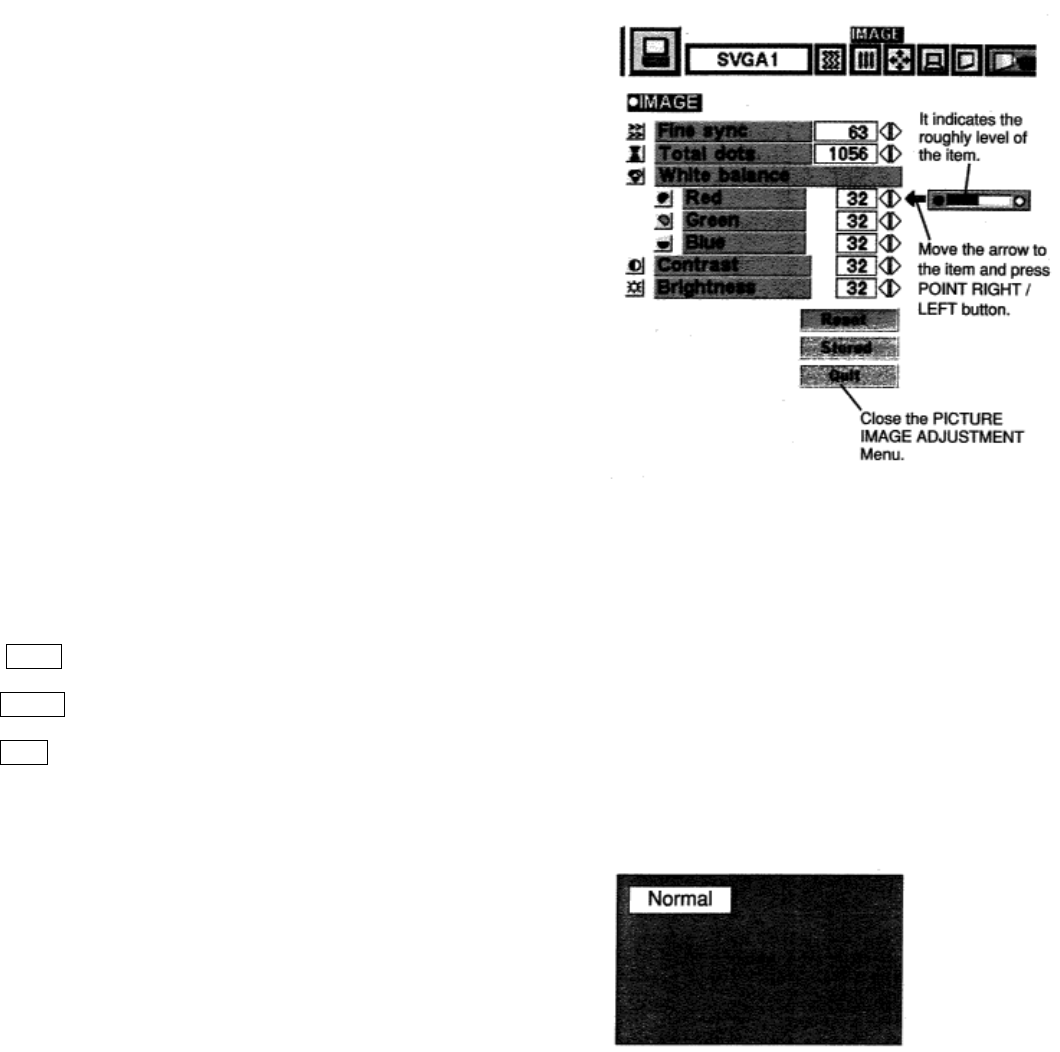

ADJUST PICTURE IMAGE MANUALLY
1
Press the MENU button and the ON-SCREEN MENU will
appear. Press the POINT LEFT/RIGHT buttons to select
IMAGE and press the SELECT button. Another dialog box
PICTURE IMAGE ADJUSTMENT Menu will appear.
2
Press the POINT DOWN button and a red-arrow icon will
appear. Move the arrow to the item that you want to change
by pressing the POINT UP/DOWN buttons. To change the
value, press either the POINT RIGHT button or the POINT
LEFT button.
Fine sync.
Adjust the picture as necessary to eliminate flicker from the
display.
(From 0 to 255.)
Total dots
The number of the total dots in one horizontal period.
Adjust the number to match your PC image.
White balance (Red / Green / Blue)
Move the arrow to Red, Green, or Blue that you want to adjust.
Press POINT LEFT button to adjust the color of image lighter, and
press POINT RIGHT button to adjust deeper. (From 0 to 63.)
Contrast
Press POINT LEFT button to adjust the image lighter, and press
POINT RIGHT button to adjust deeper. (From 0 to 63.)
Brightness
Press POINT LEFT button to adjust the image darker, and press
POINT RIGHT button to adjust brighter. (From 0 to 63.)
Each of the keys operates as follow.
Reset Recalls the data previously adjusted.
Stored Stores the adjusted data in the memory.
Quit . Closes the PICTURE IMAGE ADJUSTMENT Menu.
NORMAL FUNCTION
The normal picture level is preset on this projector at the factory and
can be restored anytime you press the NORMAL button (located on
the Top Control or on the Remote Control Units). The “Normal” display
will be displayed on the screen for a few seconds.
