Monitor
Output
BNC
cable
DVI
Output
G B R H/V V
HDMI-
DVI
cable
VGA
cable
VGA
cable
USB
cable
USB
port
Unplugthepowercordsofboththe
projectorandexternalequipment
fromtheACoutletbeforeconnecting
cables.
Cables used for connection (
= Cables not supplied with this projector.)
• VGA Cable (One cable is supplied.)
• HDMI-DVI cable
• BNC cable
• Serial Cross cable
• USB cable
Monitor
Output
HDMI
ANALOG
IN
ANALOG
OUT
Serial
Cross
cable
CONTROL
PORT
Serial
out
Installation
See the next page for the signals that can output
to the ANALOG OUT terminal.
Monitor Input

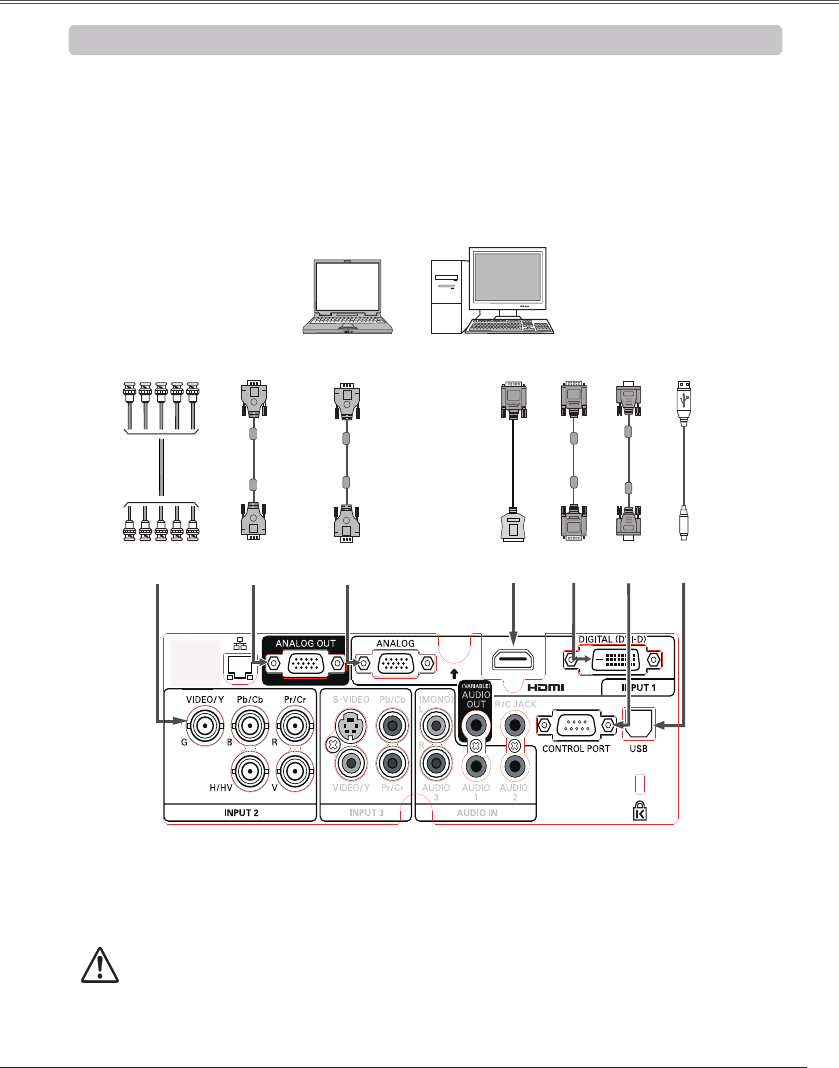

Connecting to a Computer (Digital and Analog RGB)
USB
DI GI T A L
IN
DVI-
Digital
cable
Monitor
Output
19
