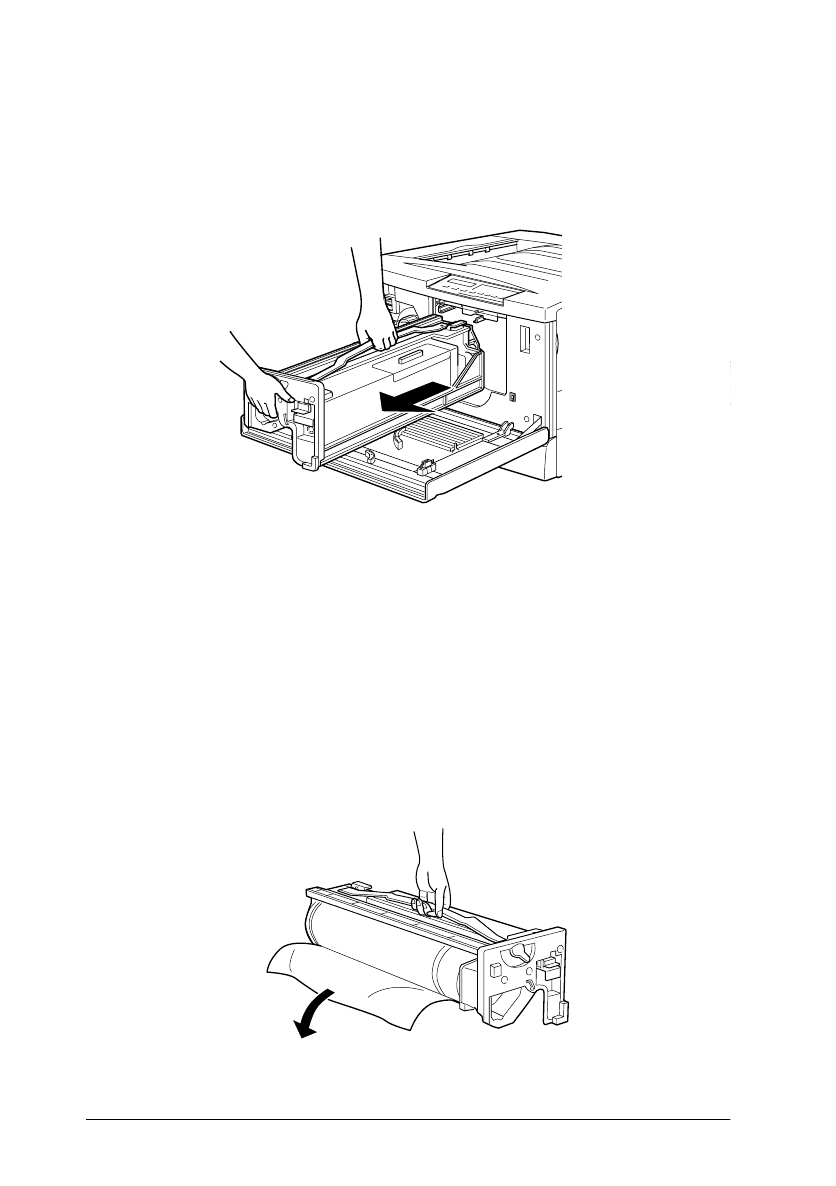

6. Hold the handle at the top of the photoconductor unit and
gently pull it all the way out.
7. Take a new photoconductor unit out of its package and
remove the protective sheet by holding the handle as shown
below.
c
Caution:
Be sure not to scratch or touch the surface of the drum.
When replacing the photoconductor unit, avoid
exposing it to room light any longer than necessary.
