6Ć9 Removal and ReplacementC4699Ć90000

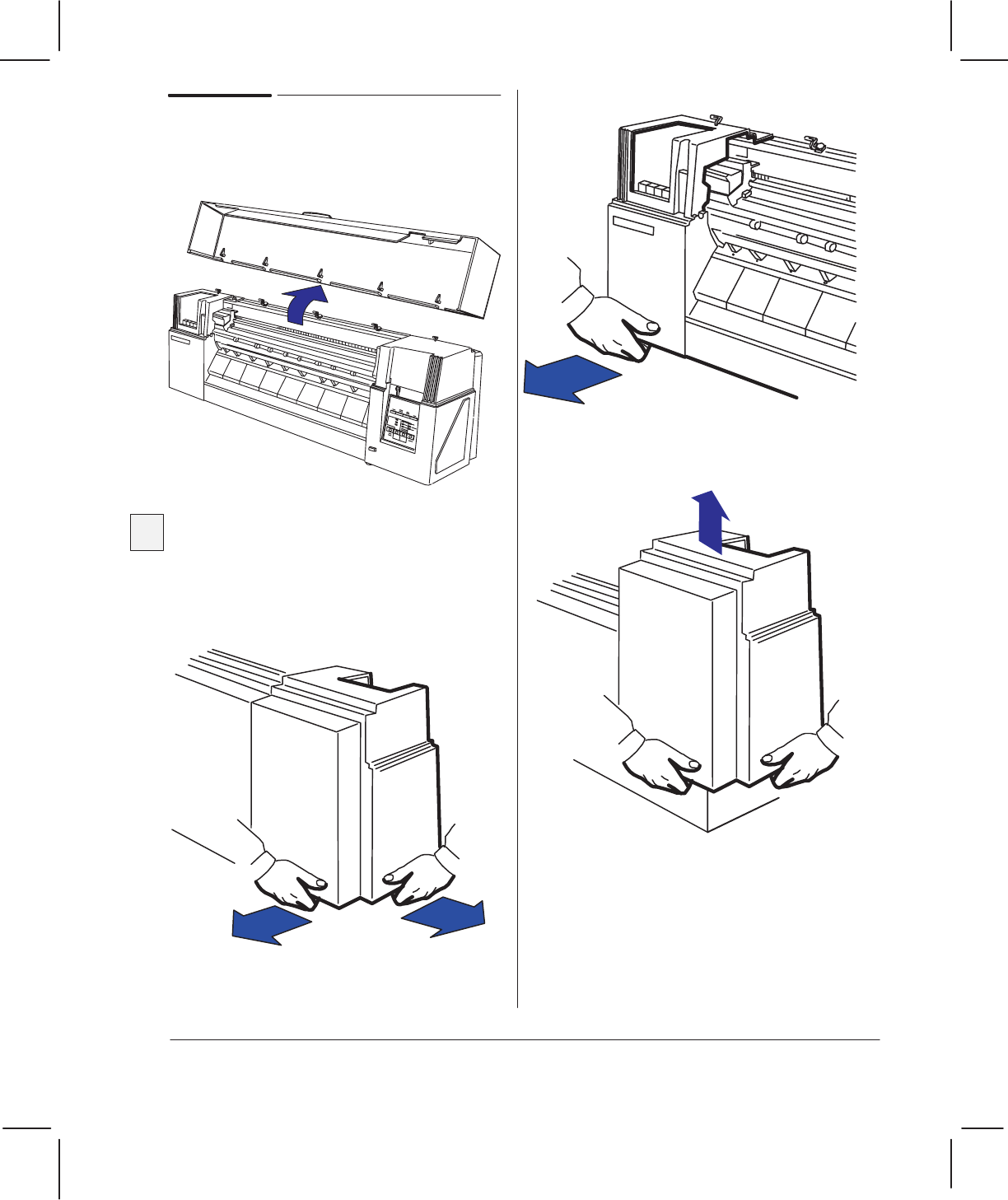

Removing the Left EndĆCover
1 Remove the top cover ' page 6Ć7.
2 Remove the rollĆfeed assembly ' page 6Ć8.
3 Release the three clips at the bottom of
the endĆcover: first the side clip, then the
front and back clips.
These may be stiff.
A
B
C
4 Pull the endĆcover up, and remove it from
the plotter.
Reassembling: It's not easy to reinstall the
endĆcovers on the plotter. With some practice,
you should learn the knack. As a guide, before
you replace an endĆcover, take a look at the
various clips on its inside, and identify where
they fit on the plotter.
Make sure that the primer plunger is installed
properly when reinstalling the endĆcover.
