Right hinge guide
1. Remove the following covers:
ADF rear cover. See
ADF rear cover on page 72.
Right hinge cover. See
Right hinge cover on page 77.
2. Remove five screws (callout 1).
1

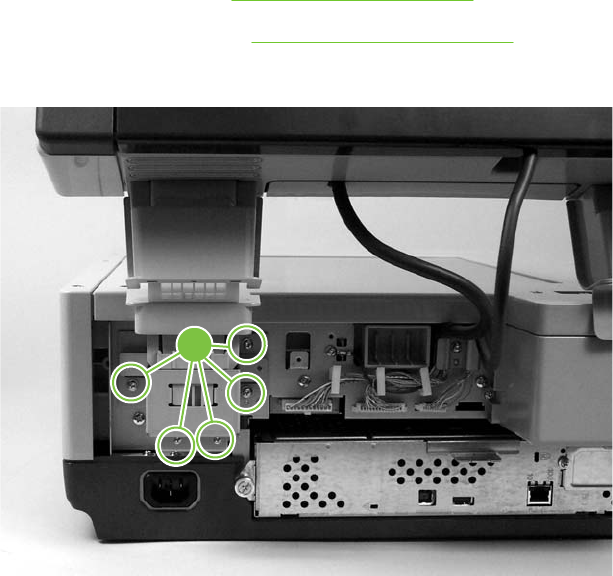

Figure 5-61 Removing the right hinge guide
3. Lift the ADF up to release the right hinge guide.
