6-36 Removing and Replacing Parts
Paper Feed Assembly
1 Remove the following covers (starting on page 6-6): Top Cover,
Left Side Cover, Front Right Side Cover, and Tray 1. Remove the
Tray 1 Pickup Assembly (page 6-29). The Paper Feed Assembly
is on the front of the printer.

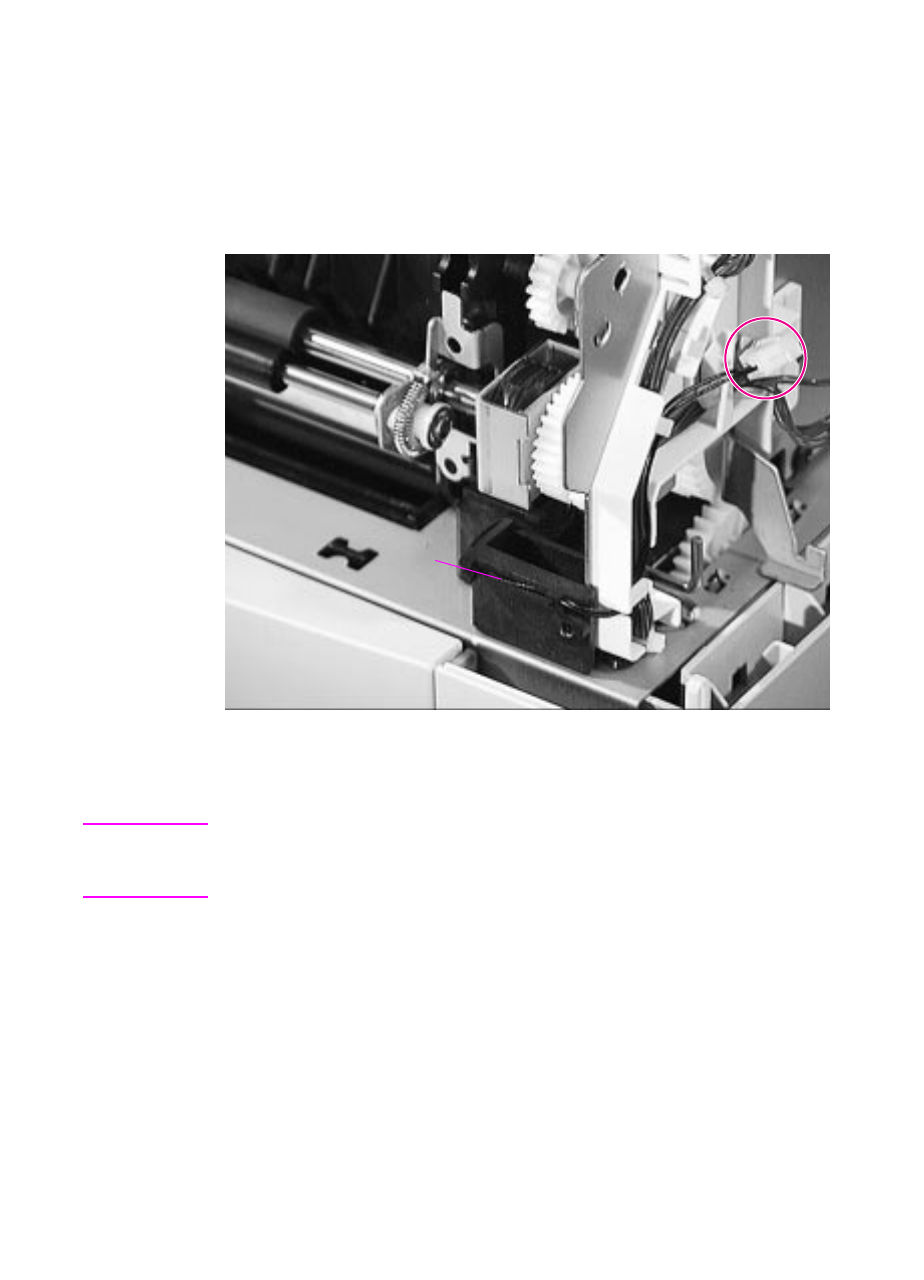

Figure 6-33 Unplugging the connector to the Paper Feed Assembly
2 Unplug and unroute the 2-pin connector from the right side.
CAUTION For replacement of the Paper Feed Assembly, note the way the wires
are routed to the connector. If a wire is routed improperly, it can be
damaged.
Note
routing
