5. Remove the cover assembly.
Reinstallation tip The figures in this section show the cartridge-door assembly installed.
However, it might be easier to reinstall the front-right and right-side cover assembly if the cartridge-
door assembly is removed. See
Cartridge-door assembly on page 71.

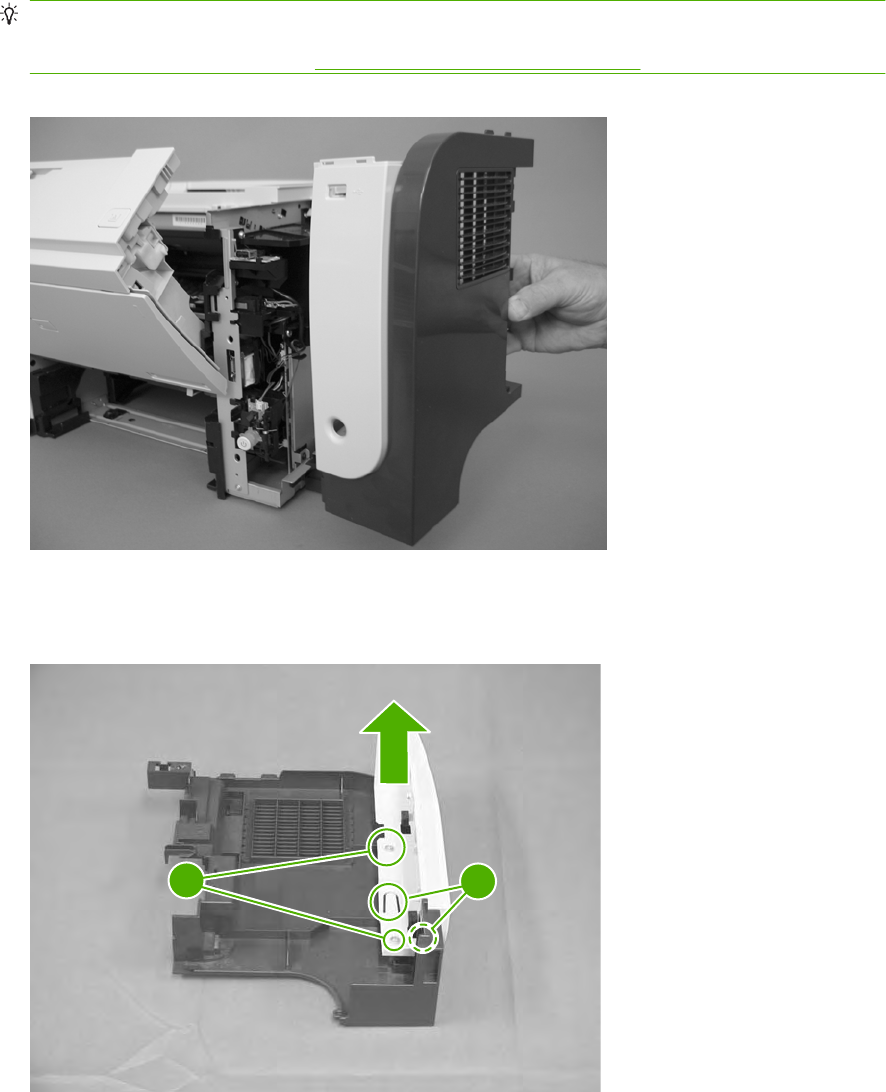

Figure 2-49 Remove the front-right and right-side cover assembly (4 of 6)
6. If necessary, remove two screws (callout 1), release two tabs (callout 2), and then slide the front-
right cover toward the top of the right-side cover to release it.
Figure 2-50 Remove the front-right and right-side cover assembly (5 of 6)
1
2
78 Chapter 2 Removal and replacement ENWW
