6
NS-L32Q-10A
www.insigniaproducts.com

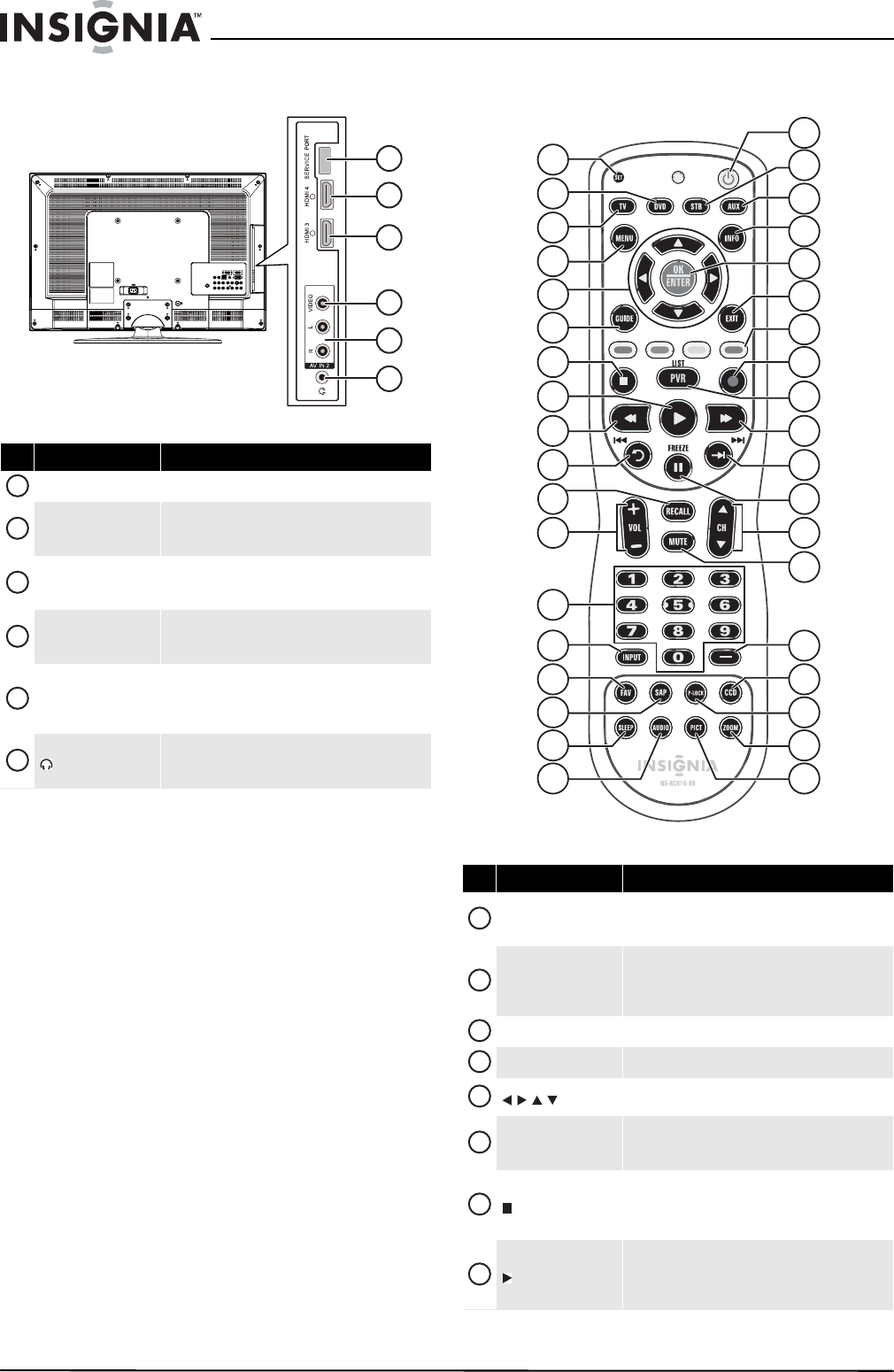

Side Remote control
# Jack Description
SERVICE PORT
For service only.
HDMI 4
Connect an HDMI device to this jack. For more
information, see “Connecting an HDMI device” on
page 11.
HDMI 3
Connect an HDMI device to this jack. For more
information, see “Connecting an HDMI device” on
page 11.
AV IN 2 VIDEO
Connect the video for a standard AV device to this jack.
For more information, see “Connecting a VCR” on
page 10.
AV IN 2 L/R
Connect the audio for an S-Video or standard AV device
to these jacks. For more information, see “Connecting
an S-Video device” on page 12 or “Connecting a VCR”
on page 10.
(headphone)
Connect headphones to this jack. For more
information, see “Connecting headphones” on
page 12.
1
2
3
4
5
6
1
2
3
4
5
6
# Button Description
SET
Press to program the remote control to control
connected devices. For more information, see
“Programming your remote control” on page 29.
DVD
Press to control a connected DVD player. You must
program the remote control before this button works.
For more information, see “Programming your remote
control” on page 29.
TV
Press to control your TV.
MENU
Press to open the on-screen menu.
Press to move left, right, up, or down in on-screen
menus.
GUIDE
Press to display the program guide. For more
information, see “Displaying additional information”
on page 15.
(stop)
Press to stop playback on DVD, DVR, PVR, or CD
devices. You need to program the remote control to
control connected devices. For more information, see
“Programming your remote control” on page 29.
(play)
Press to start playback on DVD, DVR, PVR, or CD
devices. You need to program the remote control to
control connected devices. For more information, see
“Programming your remote control” on page 29.
TV VIDEO
COMP
HDMI
12
7
1
2
3
4
5
6
8
9
10
11
13
14
15
16
17
18
31
26
19
20
21
22
24
25
27
28
29
30
32
33
34
35
36
37
23
1
2
3
4
5
6
7
8
