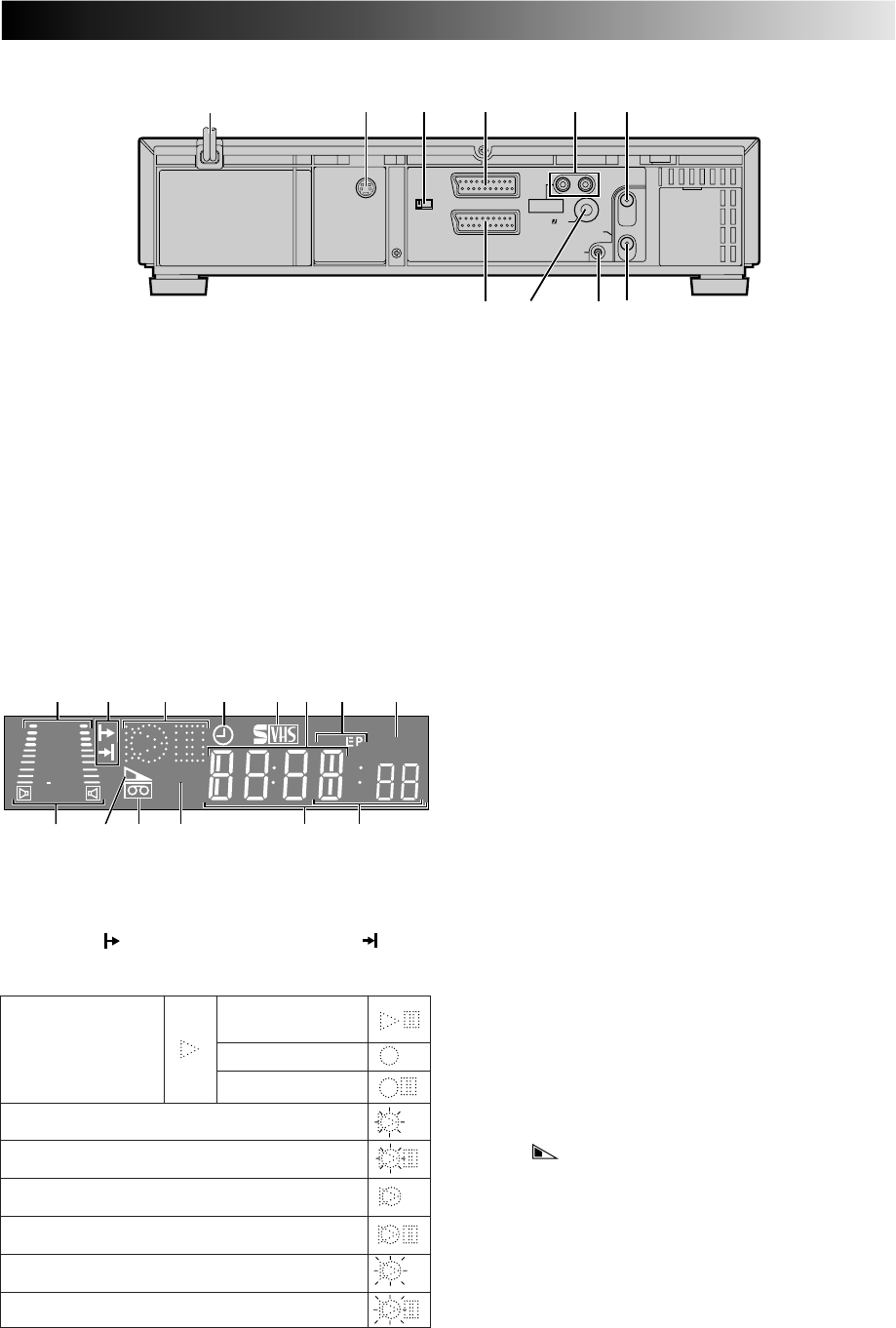

8 J Terminal (JLIP (Joint Level Interface Protocol)
Connector) enables connection of a personal
computer or similar device to allow computerized
control of the recorder during editing and certain
other operations. ੬ pg. 41
9 Remote PAUSE Connector enables connection to
second recorder equipped with R.A. Edit connector,
or to JVC camcorder equipped with Master Edit
Control, for easy editing. ੬ pg. 33
R.A. EDIT Connector enables connection to second
recorder equipped with Remote PAUSE connector for
easy editing. ੬ pg. 36
0 RF OUT Connector enables connection to aerial
terminal of TV receiver. ੬ pg. 6, 7
1 Mains Power Cord supplies power to recorder.
੬ pg. 6, 7
2 S OUT Connector enables S-VIDEO connection to
TV or second recorder. ੬ pg. 7, 34
3 AV1 OUT Switch selects the type of signal output via
the 21 pin AV1 IN/OUT connector. ੬ pg. 6, 28
4 AV1 IN/OUT Connector enables AV connection to
TV or second recorder; input recordable when "L-1"
selected. ੬ pg. 6, 34
5 AUDIO OUT (L/R) Connectors enable
connection of audio cassette recorder, TV or second
video recorder for dubbing. ੬ pg. 45
6 ANT. IN Connector enables connection of aerial.
੬ pg. 6, 7
7 AV2 IN Connector enables connection of satellite
receiver or second recorder; input recordable when
"L-2" selected. ੬ pg. 28, 34
REAR VIEW
DISPLAY PANEL
1 B.E.S.T. Picture System Display lights from bottom to
top while B.E.S.T. is active. ੬ pg. 20
Audio Level Indicator displays audio input and
output levels. ੬ pg. 27
2 Programme Time Indicators show the programme
start time ( ) and the programme stop time ( ) for
timer-recording. ੬ pg. 16
3 Symbolic Mode Indicators
4 "Timer" Indicator lights when ‰ has been pressed to
engage Timer mode.
੬ pg. 15, 17
5 S-VHS Indicator lights when a cassette marked S-VHS
is inserted with S-VHS mode set to "AUTO", and when
an S-VHS-recorded tape is played back. ੬ pg. 19
6 Channel Display shows preset position where the
station currently being received is stored.
Clock Display shows current time. ੬ pg. 9
7 Tape Speed Indicators display mode of recording; light
during Record or Play mode. ੬ pg. 12
* EP is only for NTSC playback.
8 Instant REVIEW Indicator blinks after timer-recording
and shows how many programmes have been timer-
recorded. ੬ pg. 23
9 Audio Mode Indicator displays audio output mode
currently selected. ੬ pg. 26
0 Tape Remaining Time Indicator displays time remaining
on tape when certain buttons are pressed. ੬ pg. 13
! "Cassette Loaded" Mark lights once a cassette is
inserted; remains lit until cassette ejected.
@ PDC Indicator lights when PDC has been engaged
for timer recording. ੬ pg. 15, 17
* VPS (Video Programme System) recording is not currently
available in the U.K. and not possible with this recorder.
# Counter shows time elapsed since playback or
recording began.
With displayed, shows time remaining from
current tape position to end of tape (੬ pg. 13).
Counter, Preset Position*, Clock and Tape Remaining
Time Display appear alternately when DISPLAY
(or – –:– –) is pressed.
*Preset Position is not displayed during playback.
$ Mode shows external input mode selected (L-1, L-2,
F-1 or S-1).
