+12V
GPS
SIRIUS
®
Navico Expansion Port
(Optional)
PWRETHERNETWORKS
NMEA 2000
®
XDCR
+12V
+12V
+12V
+12V
+12V
+12V
31
www.lowrance.com

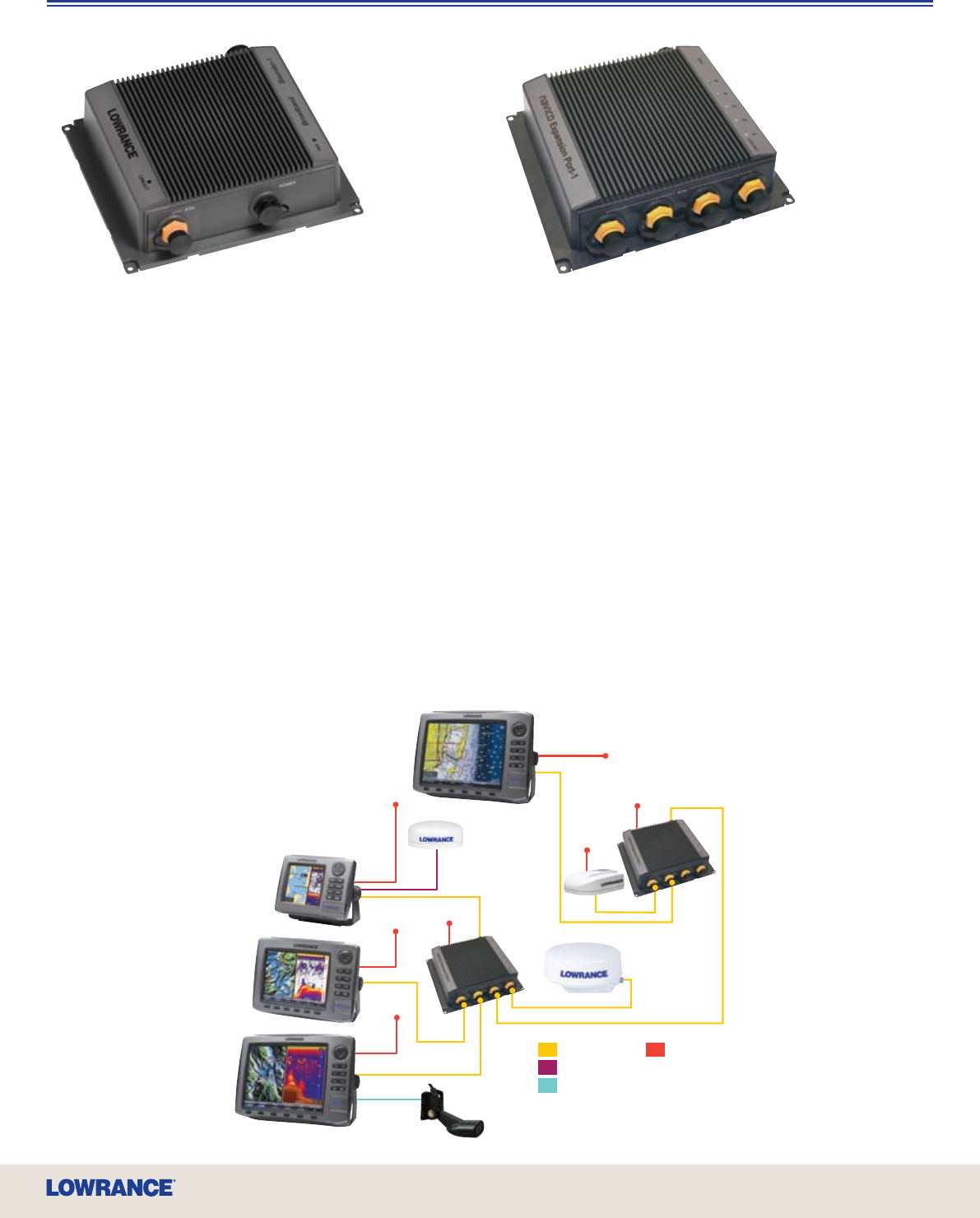

Networking & Digital Gauges
LBS-1 Broadband Sounder Module
Making the best sonar even better, Broadband marks sh
targets in, around and through structure, while operating at
high speeds in challenging conditions, perfect for sounding
shallows to extraordinary depths.
For use with a single unit, or networked with compatible
Lowrance models using the NEP-1 Expansion Port,
Lowrance Broadband Sounder also converts any compatible
chartplotter into a shnder/GPS chartplotter combo.
• Phenomenal separation of sh targets from structure,
baitsh, thermoclines, clutter and bottom
• Improved underwater sh-holding structure identication;
channels, rock piles, stump beds, submerged standing
timber, drop-offs and more
• Compatible with all 2007 and later LCX, LMS, X and
GlobalMap
®
Lowrance models
• Connects to any existing Lowrance transducer: Skimmer
®
,
pod, shoot-thru and bolt-thru hull
• Automatic operation at any frequency selected: 50, 83 and
200 kHz
• Tested sounding depths to 5,000’ / 1,525 m
NEP-1 Ethernet Expansion Port
A plug-and-play hub for high-speed data-sharing of
multiple HDS, LCX, LMS and GlobalMap
®
products
across the onboard network. Waterproof expansion ports
resist corrosive marine environments. Unused expansion
ports capped for future expansion.
• Robust 100-megabit switch for high-speed data transfer
• Compatible with all Lowrance HDS models, plus 2007
and later LCX, LMS, X and GlobalMap
®
Lowrance
models with yellow 5-pin ethernet connector
• Transmits sonar graphing display/control on GlobalMap
®
and HDS chartplotters when networked with sonar-
equipped Lowrance units
• Rugged and fully waterproof to IPX-7
• Connectivity for up to four compatible head units per
expansion module
• Links with other Expansion Port-1 modules for added/
future expansion
