7. HG-SR SERIES
7 - 16
(4) Servo motor with special shaft

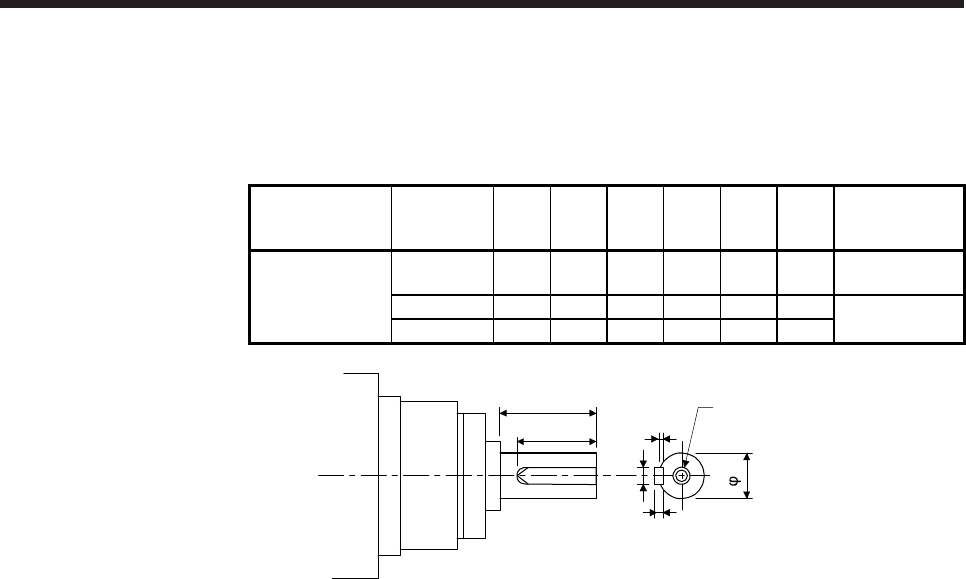

Servo motors with special shafts having keyway (with single pointed keys) are available for the flange-
mounting shaft output type for high precision applications (G7).
[Unit: mm]
Servo motor
Reducer
model
number
Q φS W T QK U Y
HG-SR_(4)(B)G7K
20A 42 25h7 8 7 36 4
M6 screw hole
depth 12
32A 82 40h7 12 8 70 5
M10 screw hole
depth 20
50A 82 50h7 14 9 70 5.5
U
W
T
Y
Q
QK
S
