8 Philips · LaserMFD 6135hfd
EN
2Overview

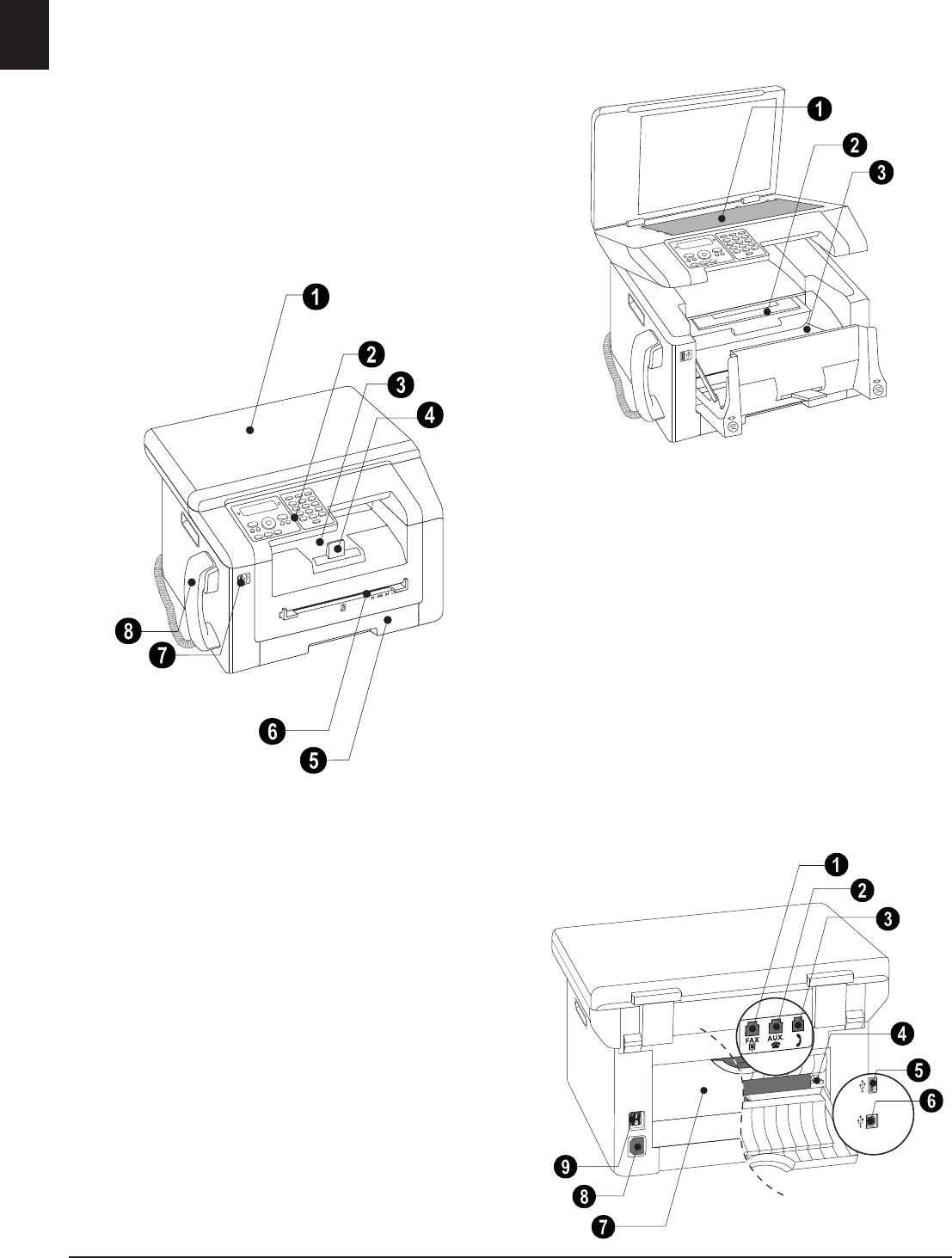

Device Overview
Scanner Cover
‚ Scanner cover
Panel with Display
ƒ Panel with display
Printout and Fax Outlet
„ Printout and Fax Outlet
Printer Output Tray
… Printer output tray
Paper Tray
† Paper tray
Manual Paper Feed
‡ Manual paper feed
USB Host Connection (Front)
ˆ ý socket—USB Host connection for storage
medium
Telephone Handset with Spiral Cable
‰ Telephone handset with spiral cable
Übersicht nummeriert
Spaltenumbruch
Scanner glass
‚ Scanner glass
Toner Cartridge
ƒ Toner cartridge
Paper Jam Door (Print Unit)
„ Paper jam door (print unit)
Übersicht nummeriert
Connections on the Rear
Side
LINE Socket
‚ FAX/Ñ socket—Connection socket for telephone
cable
EXT Socket
ƒ AUX./Ò socket—Connection socket for addi-
tional devices
Telephone Handset Socket
„ Ó socket—Connection socket for the telephone
handset
Tension lever of the fixer unit
… Tension lever of the fixer unit (Two levers!)
USB Host Connection
† ý
socket—USB Host connection for storage medium
USB Connection for the Computer
‡ ý socket—USB connection for the computer
Paper Jam Door (Fuser Unit)
ˆ Paper jam door (fuser unit)
Mains Cable Socket
‰ Mains cable socket
On/Off Switch
Š On/Off switch
Übersicht nummeriert
