2) Insert black and red test leads into COM and the
VΩ terminal.
3) Place selector switch to 600V
DC
.
4) Touch one probe to the metal lead on each side of
the battery.
5) Check the reading on your multimeter.
6) Replace the battery.
CAUTION: Avoid electrical shock or instrument damage
by not exceeding 10Vdc while in battery test mode.
Acceptable battery test range: Varies by battery type
and manufacturer. A negative value only indicates that the
(+) probe is on the (-) terminal.

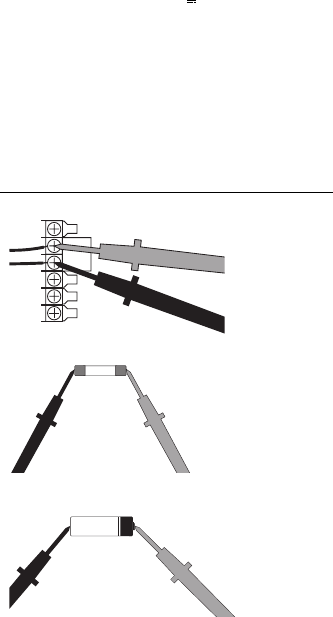

fig. 1
fig. 2
fig. 3
