Zep Part to remove
Description
Remarks
Tool

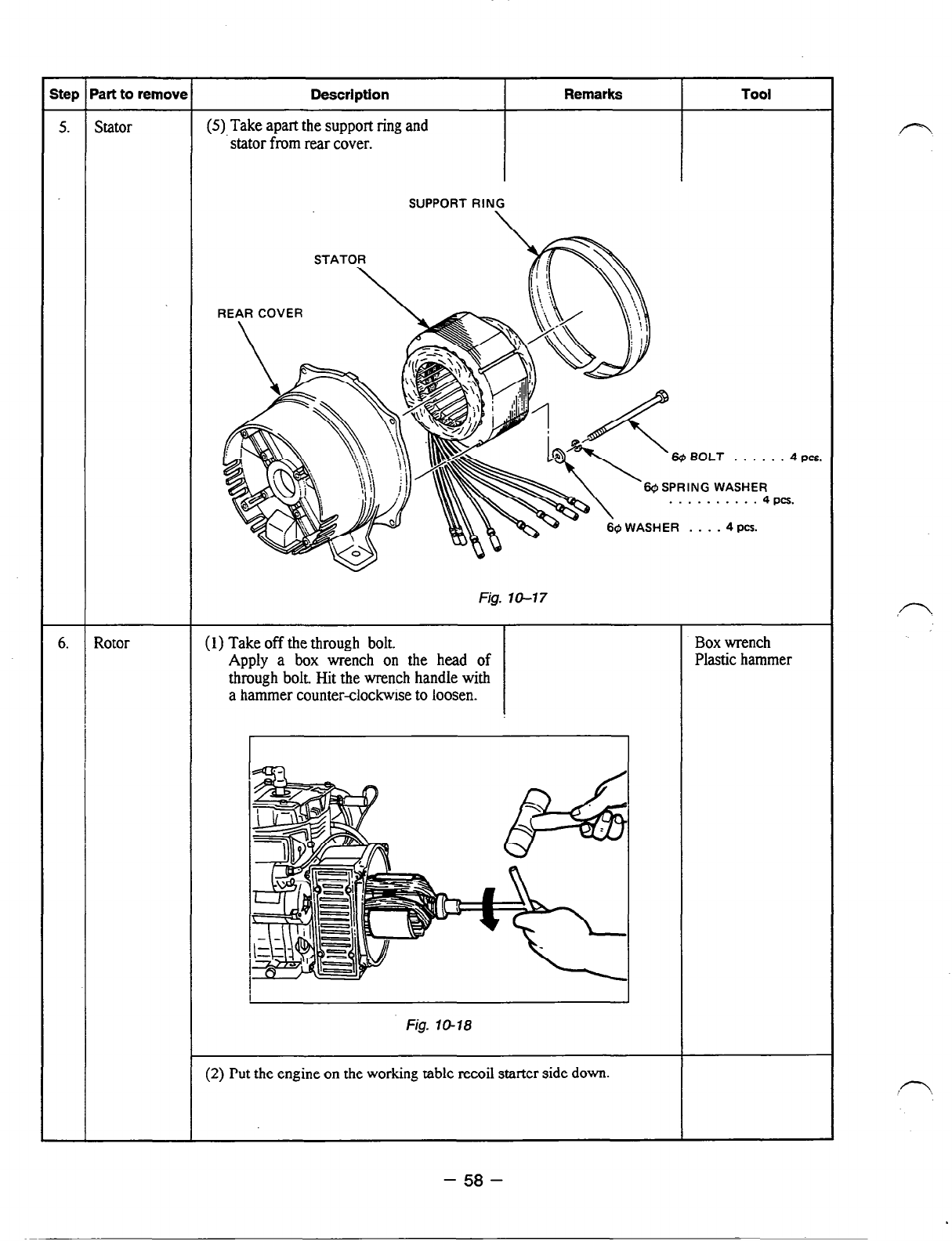

5.
Stator
(5). Take apart the support ring and
stator from rear cover.
SUPPORT RING
@BOLT . . . _ _ .4pcs.
w SPRING WASHER
. . . . . . . . . . 4 PCS.
@WASHER
. . . . 4~~s.
Fig. 10-17
6.
Rotor
(1) Take off the through bolt.
Box wrench
Apply a box wrench on the head of
Plastic hammer
through bolt. Hit the wrench handle with
a hammer counter-clockwise to loosen.
i
Fig. IO-18
(2) Put the engine on the working table recoil starter side down.
- 58 -
