7-6

Service Mode

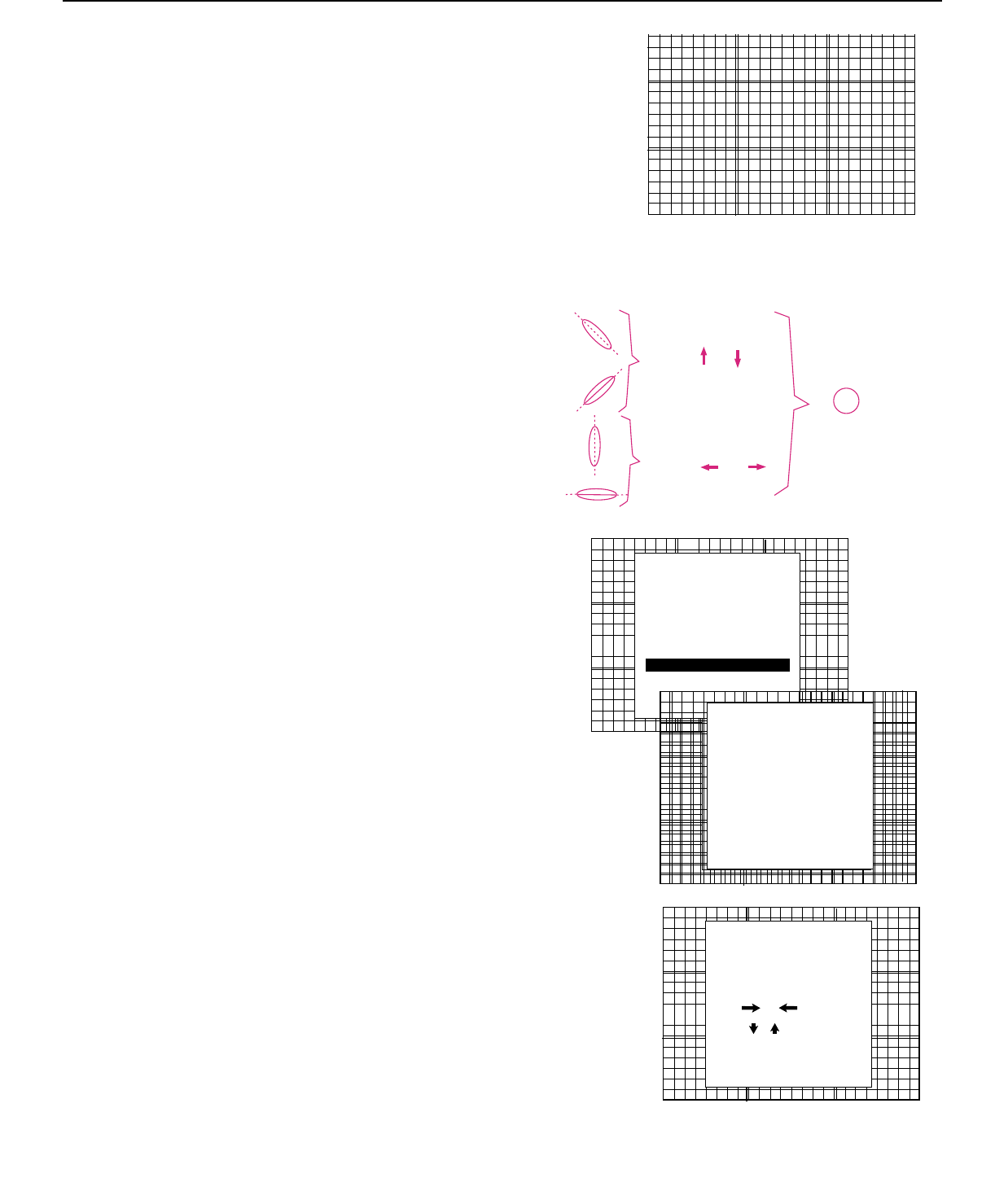

Dynamic Astigmatism (spot shape adjustment)

The spot shape adjustments correct the spot shape in 8 different

areas on the screen and that for the three colors separately. The

spot shape is adjusted according to the axial axises and the diago-

nal axises when using the arrow keys on the RCU.

These adjustments have to be done on a dot pattern (e.g. the inter-

nally generated pattern) with standard line frequency (15 kHz). The

adjustment values are stored in the EEPROM and remain the same

for all frequencies.

Follow the next procedure:

Highlight ‘Dyn. Astigmatism’ by pushing the joy stick forward or

backward and press ENTER to select.

EXIT returns to the path selection main menu.

Select the source type, selected source or genlock pattern, by high-

lighting the color for which the spot shape has to be corrected and

press ENTER.

e.g. when selecting RED under ‘on genlocked pattern’, the projec-

tor switches to a genlocked pattern.

Press ENTER to continue adjustment.

Increase the contrast level using the Contrast Control to near maxi

mum. Using that “+” Sharpness Key, defocus the image until the

dots are large and easily visible. Press ENTER to continue to SEL.

SEL : select the adjustment area on the screen where the spot

shape has to be corrected.

Use the arrow keys to select one of the 8 areas. Press ENTER to

continue to ADJ.

ADJ : adjust the spot shape in the axial or diagonal direction when

using the arrow keys for the selected area. Adjust until the spot

shape is circular.

1

23

5

8

7

4

6

Spot Shapes

before dynamic

astigmatism correction

Diagonal

astigmatism correction

Spot Shapes

after dynamic

astigmatism correction

Axial

astigmatism correction

(use the

and

arrow key)

(use the

and

arrow key)

DYNAMIC ASTIGMA

YNAMIC ASTIGMA

TISM

TISM

ON SELECTED SOURCE

ON GENLOCKED PATTERN

BLUE

GREEN

RED

BLUE

GREEN

RED

Select pattern or color

or

then

<ENTER>

<EXIT>

to return.

with

SERVICE MODE

IDENTIFICATION

COPY A BLOCK

DELETE A BLOCK

DELETE ALL BLOCKS

CHANGE PASSWORD

CHANGE LANGUAGE

RUN TIME

SET TO MIDPOSITION

CONVERGENCE MIDE

DYNAMIC ASTIGMATISM

MORE...

DYNAMIC ASTIGMATISM

First adjust the defocusing

of the image.

SEL : select area using arrow keys

ADJ : adjust axial astigmatism

using

or , diagonal

astigmatism using

Toggle between SEL and ADJ

with <ENTER>

<ENTER> to continue

<EXIT> to return.

DYNAMIC ASTIGMATISM

ON SELECTED SOURCE

RED

GREEN

BLUE

ON GLENLOCKED PATTERN

RED

GREEN

BLUE

Select pattern or color

with or

then <ENTER>

<EXIT> to return.
