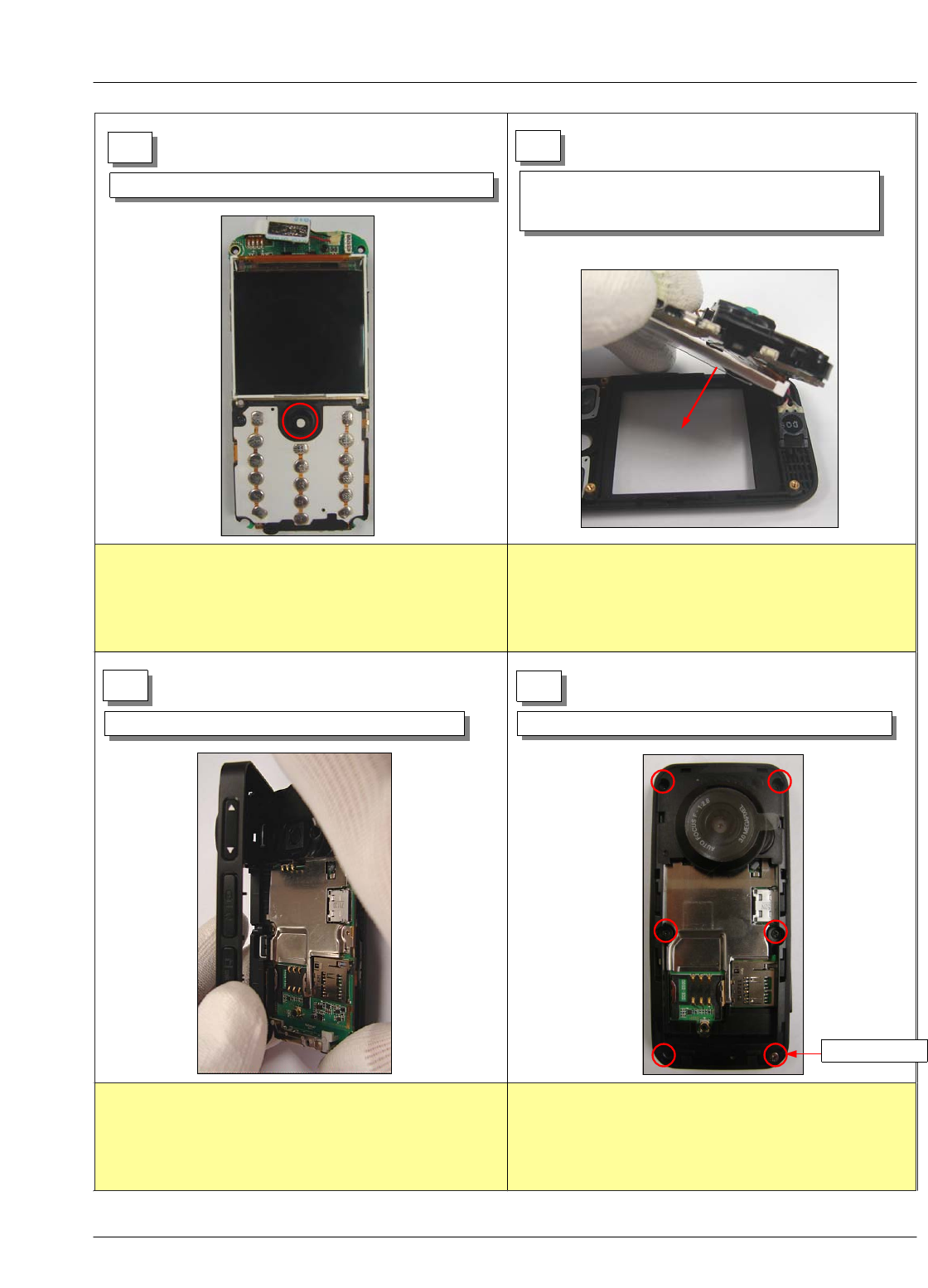

Exploded View/Disassembly&Assembly Instructions
5-8
This Document can not be used without Samsung's authorization
1) Be careful not to make scratch and molding damage! 1) Be careful not to make scratch and molding damage!
1) Be careful not to make scratch and molding damage.
2) Be careful not to damage LCD F-PCB.
1) Check the SCREW SIZE.(HANGER SCREW and M1.4,L5)
2) Be careful not to make scratch and molding damage.
3) USE TORQUE : 0.9 ~ 1.1 Kgf.cm
5
1) Attach the JOG KEY on the KEY BRACKET.
6
7
8
1) Insert the KEYPAD into FRONT.
2) Attach the RECEIVER on the FRONT.
3) Assemble PBA ASS'Y with FRONT.
1) Assemble FRONT with REAR.
1) Screw the REAR at the 6 points.
HANGER SCREW
