EOCR-i3BZ/iFBZ/3BZ2/FBZ2
EOCR-i3BZ / iFBZ : Intelligent Digital Over-Current, Earth Fault Relay with built-in ZCT,
EOCR-3BZ2 / FBZ2 : Economic Digital Over-Current, Earth Fault Relay with built-in ZCT
3 phase digital ammeter function

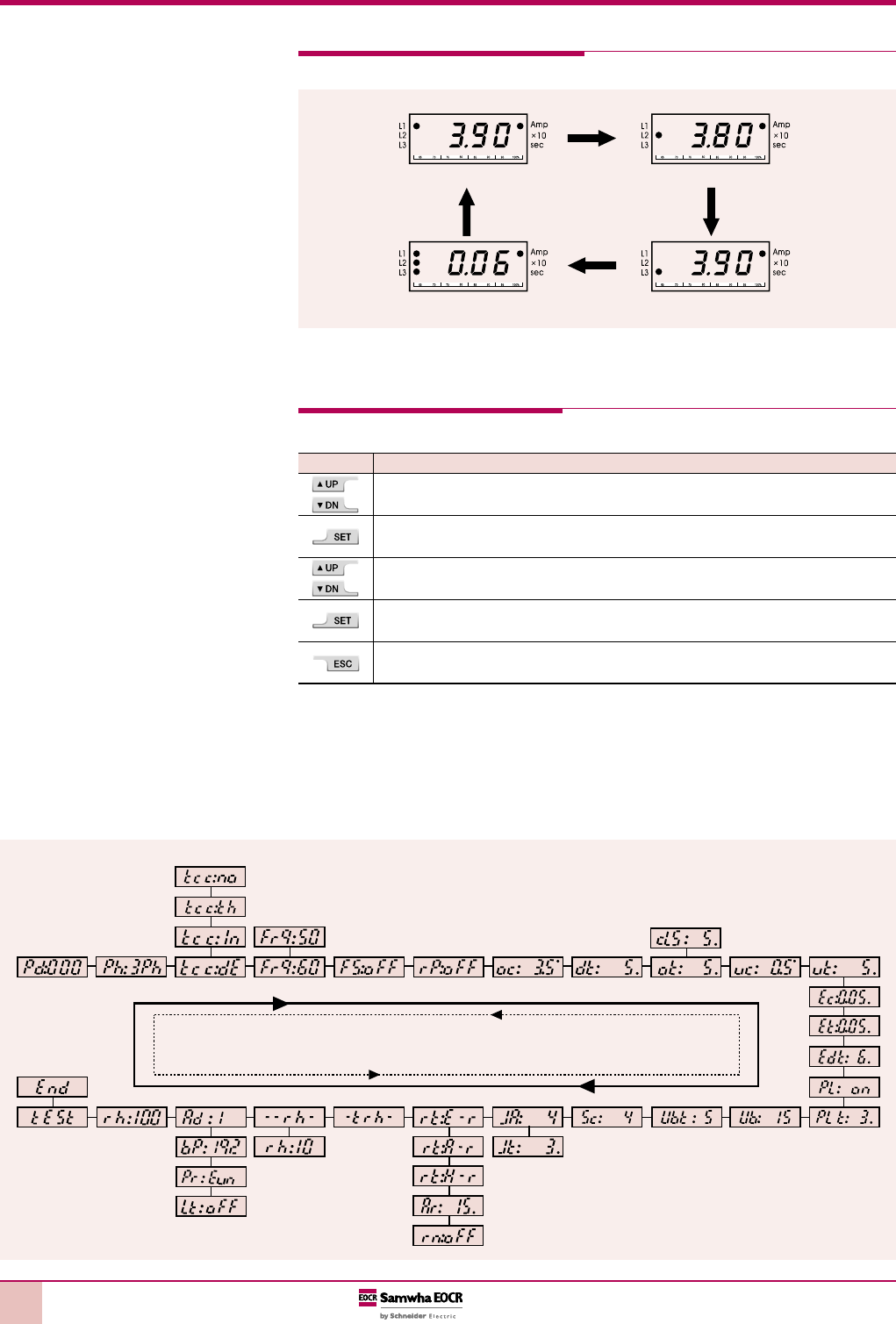

Blocking display rotation can be done by pressing the SET button once during running. whenever press the SET button,
the each phase current displays by turns. A fixed phase current display can be done by this.
Pressing the ESC button, it returns to the Auto current display rotation mode.
Button Description
Navigate menus by pressing UP/DN button.
Select a parameter to change, then the parameter starts blinking.
Modify a parameter value by pressing UP/DN button.
Memorize the values in the relay by pressing SET button. blinking stops to
show it’s stored.
Pressing ESC button, it returns to the current display. Without pressing ESC
button, it returns to the load current display in 50sec automatically.
Buttons and Setting Sequence
●●
Setting sequence
