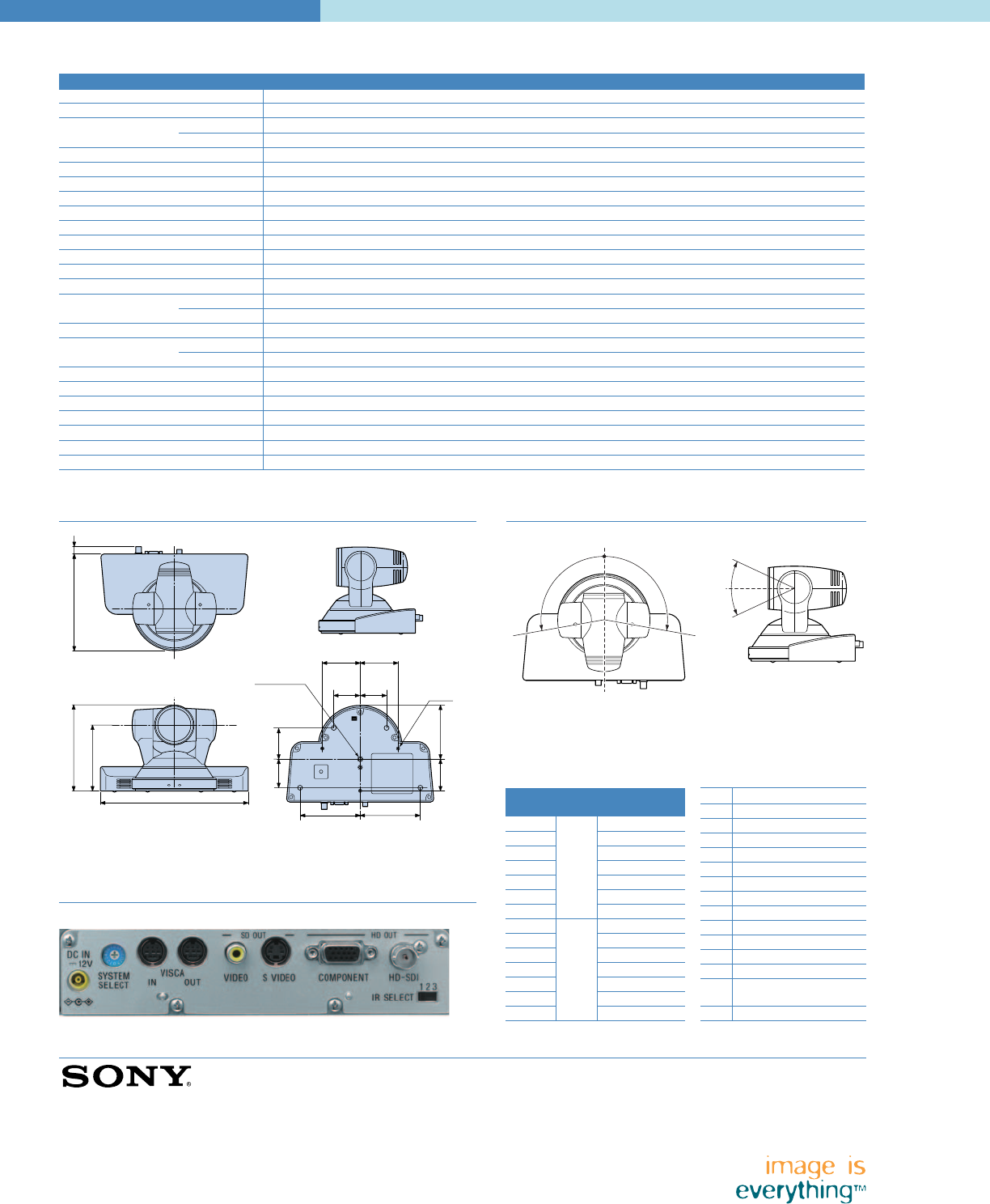

PAN/TILT RANGE
CONNECTOR PANEL
DIMENSIONS
SPECIFICATIONS
EVI-HD1
Image sensor 1/3-type CMOS
Effective pixels Approx. 2 Megapixels (16:9)
Signal system HD 1080/59.94i, 1080/50i, 1080/29.97p, 1080/25p, 720/59.94p, 720/50p, 720/29.97p, 720/25p
SD NTSC, PAL
Lens 10x optical Zoom, 40x with digital zoom, f = 3.4 to 33.9 mm, F 1.8 to F 2.1
Minimum object distance 100 mm (wide)
Horizontal viewing angle 8° (tele) to 70° (wide) at HD signal output
Focus system Auto / Manual
Minimum illumination 15 lx (50 IRE, F1.8)
Exposure control Auto / Manual / Priority AE / Exposure compensation / Bright
Shutter speed 1/2 to 1/10,000 sec.
Gain Auto / Manual (-3 to +18 dB)
White balance Auto / Indoor / Outdoor / One push auto / Manual
S/N Ratio 50 dB
Pan/Tilt Pan ±100° (Max. speed 300°/sec.)
Tilt ±25° (Max. speed 125°/sec.)
Position preset 6 positions
Video output HD HD-SDI, Analog Component (Y/Pb/Pr)
SD VBS, Y/C
Power requirements 12 V DC (10.8 to 13.0 V DC)
Power consumption Max. 30 W (at DC 12 V)
Operating temperature 32 to 104°F (0 to 40°C)
Storage temperature -4 to 140°F (-20 to 60°C)
Dimensions Approx. 10
1
/4 (W) x 6 (H) x 6
3
/4 (D) inches (259 x 150 x 169 mm)
Weight Approx. 4 lb 7 oz (2 kg)
Supplied accessories AC adaptor (1), AC power cable (1), IR remote commander unit (1), Operating instructions (1)
Tripod hole
3
3
/4
(94)
4
5
/8
(115)
6 (150)
6
3
/4
(169)
17
/32
(13)
2
(50)
2
1
/4
(55)
2
1
/4
(55)
4
1
/4
(105)
10
1
/4
(259)
2
5
/8
(66)
3-M3
1
13
/16
(46)
1
13
/16
(46)
2
5
/8
(66)
4
1
/4
(105)
Unit: inch (mm)
* When the camera is panned more than 45 degrees with the camera tilted 25 degrees
downward, the camera base might be in the field of view depending on the zoom
setting.
SW Mode Output Signal
Position Format
0 1080 / 59.94i
1 1080 / 29.97p
2 720 / 59.94p
3 60 Hz 720 / 29.97p
4 NTSC (Letter Box)
5 NTSC (Cropping)
6 NTSC (Squeeze)
8 1080 / 50i
9 1080 / 25p
A 720 / 50p
B 50 Hz 720 / 25p
C PAL (Letter Box)
D PAL (Cropping)
E PAL (Squeeze)
1 Pr-OUT
2 Y-OUT
3 Pb-OUT
4 GND
5 GND
6 GND
7 GND
8 GND
9NC
10 GND
11 GND
12 NC
13 HD-OUT
14 Tri Level Sync / VD-OUT
(selected by menu)
15 NC
SELECTABLE OUTPUT
SIGNAL FORMAT*
HD COMPONENT VIDEO
(D-Sub 15 pin)
* The “SYSTEM SELECT” switch is used to
select the camera‘s output signal format.
IS-1153
MK10388V1
Sony Electronics Inc.
1 Sony Drive
Park Ridge, NJ 07656
www.sony.com/videocameras
©2006 Sony Corporation. All rights reserved.
Reproduction in whole or in part without written permission is prohibited.
Design, features, and specifications are subject to change without notice.
All non-metric weights and measurements are approximate.
Sony, Remote Commander and VISCA are trademarks of Sony.
Printed in USA 12/06
