5.2 Troubleshooting Flow Charts

5.2.1 “MAIN VOLT/FREQ NOK”

Start

Is the main

input circuit breaker

(Q1) turned on?

Turn on the main

input circuit breaker

Is the main input

voltage or frequency

out of range?

Calibrate parameter on

EEPROM

(2)

Replace P board or M

board

(3)

N

N

Y

Y

END

END

actual value and LCD

Are the

value the same ?

Is the LCD value zero ?

Check the EEPROM

voltage setting

(2)

Is the Wire #1

(1)

connection OK?

Fix the connection

N

N

Y

Y

Y

N

5 Troubleshooting (continued)

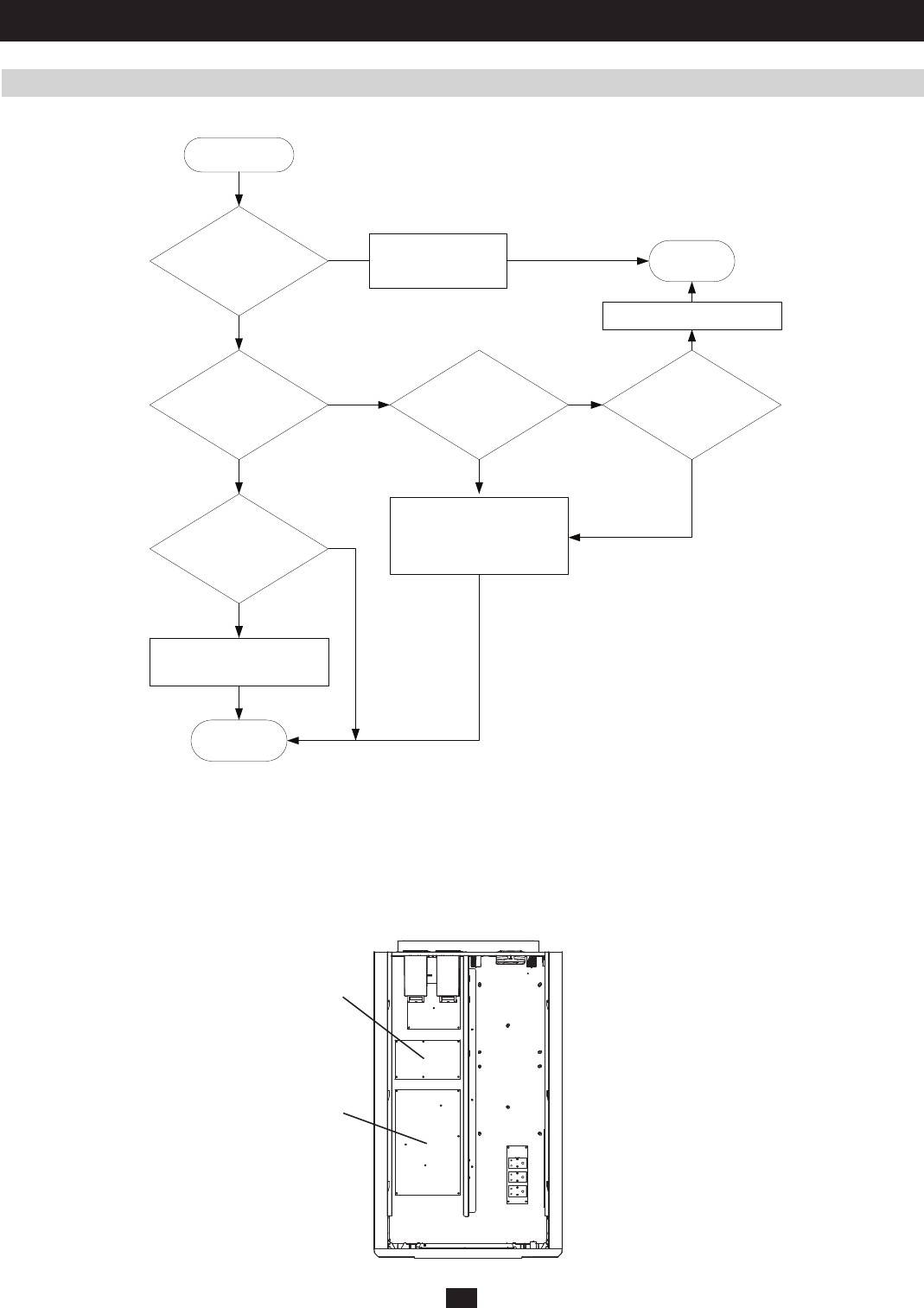

Fig 5.2.1a

Fig 5.2.1b

Note (1): For SU20KX, SU40KX and SU40K models, wire #1 is connected between the P board (CNP7) and FA (CNA9) for main input. (See chap-

ter 1.5.) For SU60KX, SU80KX, SU60K, SU80K, SU60KTV and SU80KTV, wire #1 is connected between the P board (CNP7) and F1 (CNF15) for

main input. (See section 1.5.)

Note (2): To learn about EEPROM parameter settings and calibration, turn to section 3.2.

Note (3): For the location of the NHS-SYS-P and NHS-SYS-M boards, turn to section 1.5. To replace the NHS-SYS-M board, simply remove the

EEPROM chip from an old NHS-SYS-M board and insert it into the new one.

P

M
