USING THE PLATINUM ID 120

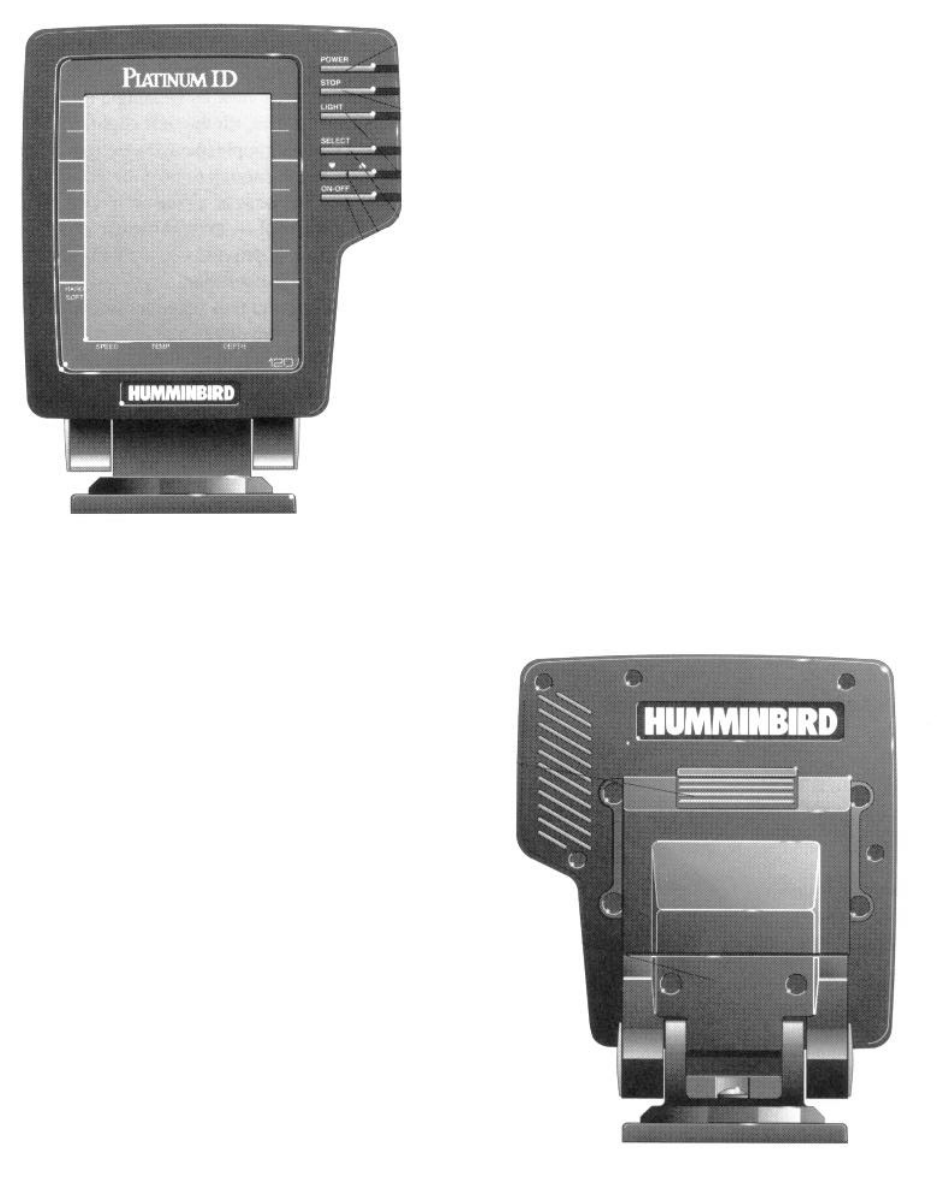

PLATINUM ID FEATURES
POWER: Press the button once to turn the
Platinum ID on, then press again to turn the
unit off. When the unit is off, keeping POWER
pressed for about two seconds starts the built-
in simulator.
STOP: Freezes the action on screen so that it
can be studied more closely or to allow more
time to adjust menu functions.
LIGHT: Activates the backlight for nighttime
use.
SELECT: Allows the user to select between
menu functions that are displayed on the
screen.
UP-DOWN: Is used for adjustment of the
menu functions.
ON-OFF: Turns the menu functions on and off.
The latch is used to remove the Platinum ID
from the swivel mount. To use simply press
the bar and lift the unit from the mount.
The Connector System cover is used to
facilitate mounting of the Platinum ID unit.
With the connector in place, all of the cables
are held securely in place so that the unit
can be easily removed and mounted.
The All-in-One Mounting System for the
Platinum ID allows for complete control of
unit placement. The base swivels a full 360
degrees so that the unit is always at the
optimal viewing angle. Also, the bracket has
a ratchet mechanism that allows the unit to
be tilted backward and forward to achieve
the best viewing angle for different heights.
