USING THE PLATINUM ID 120
OPERATING INSTRUCTIONS
PLATINUM ID FUNCTIONS

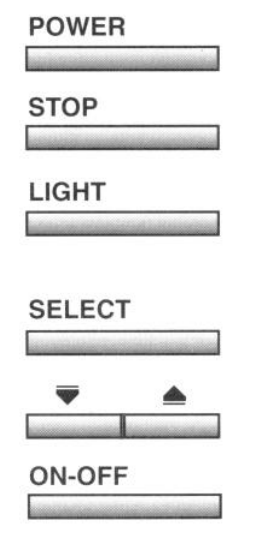

The Platinum ID offers several functions that you can adjust
with the front panel buttons. (Note that to select something
with a button, you must press it fully so that you can hear a
“chirp” sound.)
You can get acquainted with these features by actual
operation, or when using the simulator.
POWER: Press the button once to turn the unit on, then press
the button again to turn the unit off. When the unit is off,
keeping POWER pressed for about two seconds starts the
built-in simulator.
STOP: Press this button to “freeze” the display so you can
study it. Press it again to restart the display movement.
SELECT: This button is used to access the following functions
for further adjustment:
• ID
• Units
• Sensitivity
• Bottom Alarm
• Fish Alarm
• Zoom Range
• Bottom Lock
• Display Speed
• Depth Range
• Trip Log
To adjust any of these, press SELECT until the function you want appears. Each
function’s display tells you how to use the arrow buttons and ON-OFF for adjustment;
when first using, you should also refer to the following instructions.
