USING THE 200DXUSING THE 200DX
MENU FUNCTIONS

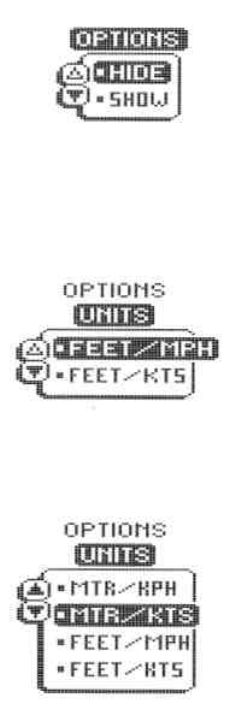

Options. The Options Menu is a series of linked menu functions
used initially to set your preferences. Once your preferences are
selected it is unlikely these functions need to be accessed during
the normal operation of the product.
The Options menu works differently than other menu functions in that all of the options
must be cycled through in order to return to normal operation. There are six Option
menus: Units, Fish ID, Numeral size, Bottom Black, Diagnostic, and Reset.
Units Speed. The Units Speed function allows the user to elect
the units or measurement for the speed readout. Both MPH or
statute miles per hour and KTS or nautical miles per hour are
available. The 200DX remembers this selection even when the
unit is powered off.
Units Depth/Speed. Only available on metric versions, the
Units Depth/Speed function allows the user to select the units of
measurement for the depth and speed readout. MT/KPH
(meters/kilometers per hour), MT/KTS (meters/nautical miles per
hour), FEET/MPH (feet/statute miles per hour) and FEET/KTS
(feet/nautical miles per hour), are available. The 200DX
remembers this selection even when the unit is powered off.
