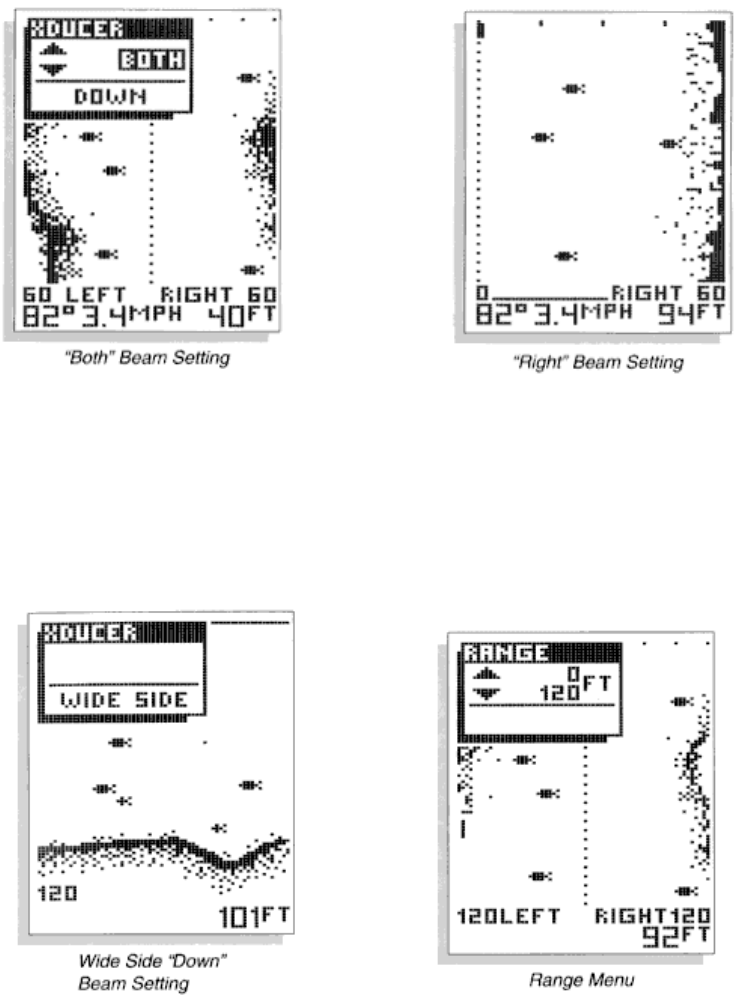

The "Range" menu (below) in Wide Side must be used to control the range manually, as the
bottom is not always visible onscreen. Ranges of 15, 30, 60, and 120 feet are available.
"Zoom" has no function in Wide Side mode and the menu will not be present.
ID menu functions are slightly different in "wide side" and "down" modes. In the "wide side" mode
ID+ is not an option, and all fish are displayed as medium sized fish symbols. In the "down" mode
ID+ is available, and fish are displayed in three sizes.
Most other menu functions work the same in Wide Side mode as with the standard dual beam
transducer. "Bottom Alarm", "Fish Alarm", and "Sensitivity" have the same effect.
"Triplog" is available, if the optional speed and temperature accessory is connected.
To return to the normal "down" operation using the standard dual beam transducer, you must
reconnect the dual beam transducer (by replacing the Wide Side connector) or use the switch to
select the dual beam transducer. Next, configure the unit by selecting the "down" mode under the
"System Options" menu.
Note: The "sonar mode" must always be configured to match the type of transducer being used.
