Northstar Explorer D310 Installation and Operation Manual
8

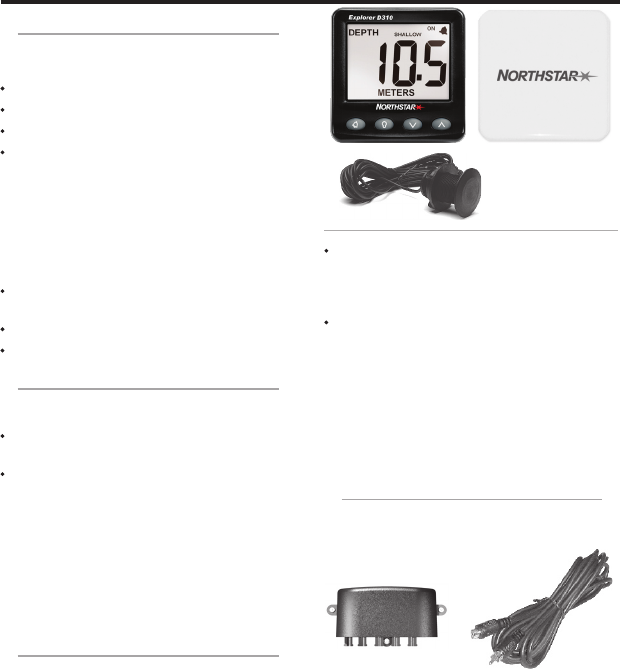

5 Explorer D310 hardware
5-1 What comes with your Explorer D310
The Explorer D310 comes in several configurations.
Standalone configuration
Explorer D310 unit with protective cover.
Warranty card.
Mounting template.
This Installation and Operation manual.
In addition, the standalone configuration usually
requires a depth transducer (see section 5-3).
Kit configuration
The Explorer D310 is available in several kit
configurations with different grades of through hull
transducer, with:
The parts for the standalone configuration,
listed above.
Through hull depth transducer.
Transducer Installation manual.
5-2 Other parts required
One or more 310 series instruments will be
connected to the boat 12 V power supply via:
An accessory switch to turn the instruments on
and off.
A fuse. Use a 1 A fuse for between one and five
instruments.
Optional external beepers or lights can be fitted.
The Explorer D310 output is switched to ground,
30 V DC and 250 mA maximum. If the beepers and
lights require more than 250 mA, fit a relay.
For systems of several instruments, wiring and
connectors are required (see section 4 or the
NavBus Installation and Operation manual).
5-3 Transducer
The Explorer D310 is usually used with a through
hull depth transducer. However, the unit can take
readings from another instrument, in which case it
may not need a transducer (see section 4).
A through hull transducer generally gives the
best performance and is the best choice for
displacement hulls. It is mounted in a hole drilled
through the bottom of the boat.
A plastic through hull transducer is suitable
for GRP or metal hulls. Plastic through hull
transducers are not suitable for solid wooden
hulls (use Northstar’s bronze transducers).
A bronze transducer is suitable for wood
or fibreglass hulls. Never install a bronze
transducer in a metal hull, because it will cause
electrolytic corrosion.
A range of Northstar through hull transducers
are available, plus in hull and transom mount
transducers. For more information, refer to the
Transducer Installation manual or consult your
Northstar dealer.
5-4 Accessories
These accessories are available from your Northstar
dealer.
4 m (13 ft) depth
transducer extension
cable
NavBus junction box
(See section 4)
