DS41 Owner’s Manual2
Specifications
• Size
Mount 2" (51mm) diameter hole
Depth behind face plate 3.75" (95mm) max.
Display 3-character LCD
• Color
Black with texture on bezel.
• Backlighting
Red colored diffused lighting for display.
• Water Integrity
Front will withstand direct water spray.
• Depth/Alarm Range
2.0!600 feet
0.6!184 meters
0.3!100 fathoms
(to 9.9 in tenths)
• Sensitivity
0.05mV RMS.
• Transmit Power
36 W RMS nominal at 13.6 VDC.
• Transducer
200 kHz 1900 pF/600 W parallel.
• Display Updating
1 second.
• Operating Voltage
9.5 VDC to 16.5 VDC.
• Operating Temperature
0°C to 50°C (32°F to 122°F).
• Current Drain
150mA max, including internal buzzer.
• Data Input/Output
Single wire data output/Input.
Dual station mode outputs NMEA DPT
sentence. Dual station inputs NMEA DPT
sentence. In the linked mode a dual station
pair also transfer function settings eg. Alarm
on/off.
• NMEA Output
DPT.
• NMEA Input
DPT and DBT.
• External Buzzer Output
12VDC Buzzer, 100 mA max.
• RF Interference
<6 dB quieting on any marine radio channel
(with 3 dB gain antenna) within one meter of
the instrument. Complies with CE EMC
standards EN50081-1 and EN50082-1.
OFFON
888
^
V

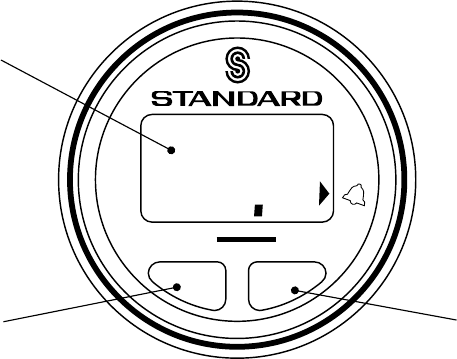

Horizon Depth
Display is backlit for
Night Operation
Alarm On/
Change Value Up
Alarm Off/
Change Value Down
