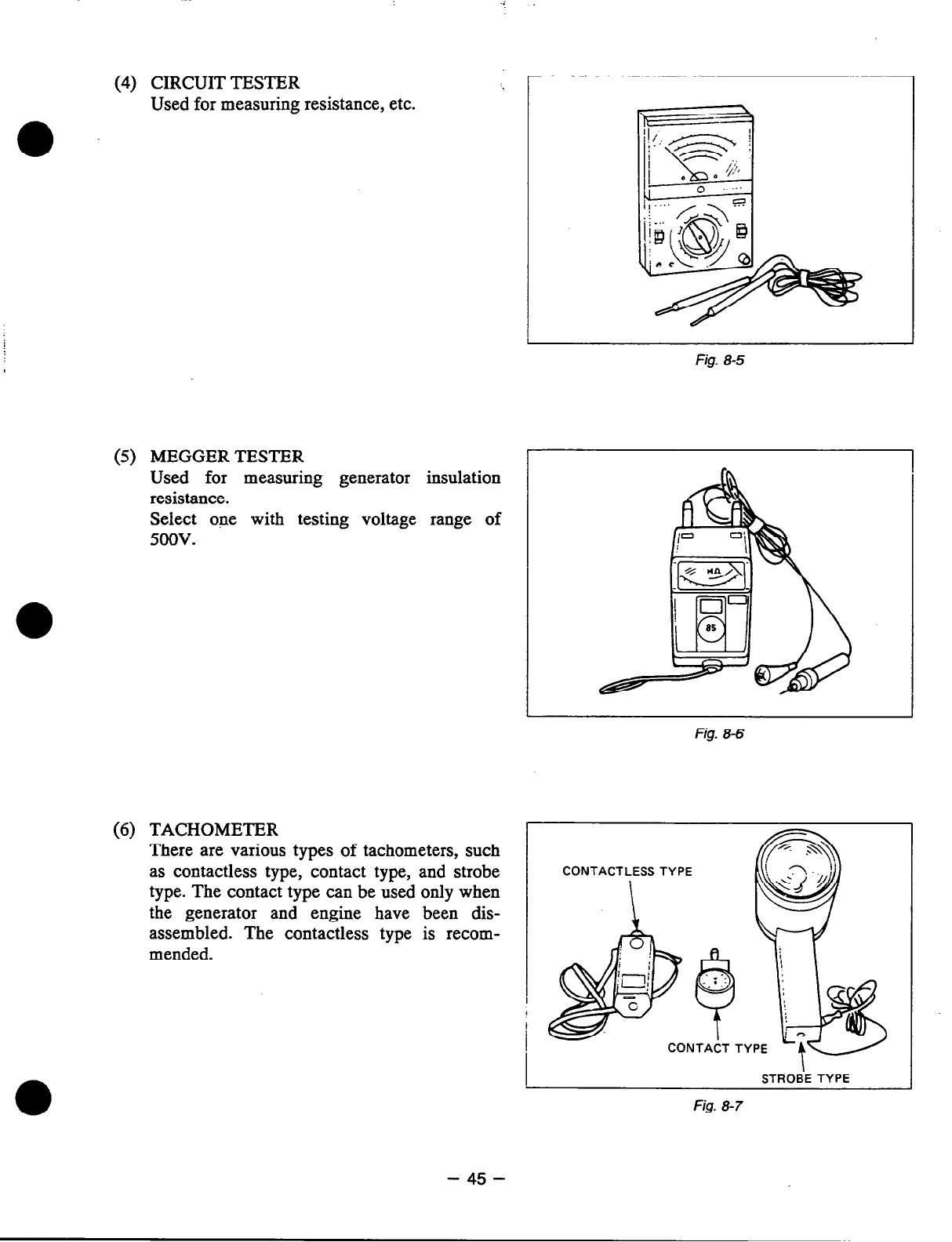

(4) CIRCUIT TESTER
Used for measuring resistance, etc.
(5) MEGGER TESTER
Used for measuring generator insulation
resistance.
Select one with testing voltage range of
5oov.
I
I
Fig. 8-5
I
I
Fig. 8-6
There are various types of tachometers, such
as contactless type, contact type, and strobe
type. The contact type can be used only when
the generator and engine have been dis-
assembled. The contactless type is recom-
mended.
I
CONTACTLESS TYPE
CONTACT TYPE
STnOdE TYPE
Fig. 8-7
- 45 -
