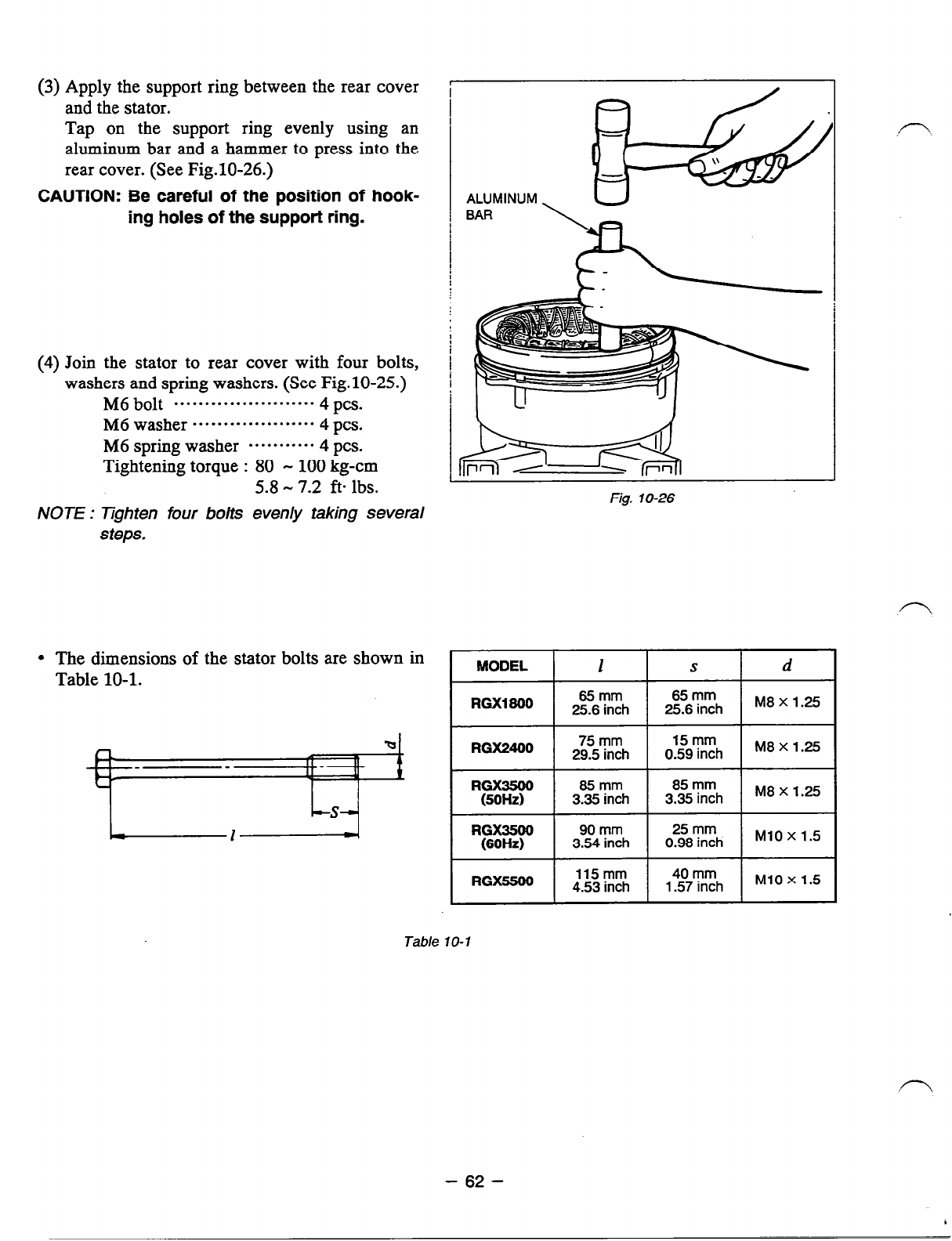

(3) Apply the support ring between the rear cover
and the stator.
Tap on the support ring evenly using an
aluminum bar and a hammer to press into the
rear cover. (See Fig-lo-26.)
CAUTION: Be careful of the position of hook-
ing holes of the support ring.
(4) Join the stator to rear cover with four bolts,
washers and spring washers. (See Fig. 10-25.)
M6 bolt
. . . . . . . . . . . . . . . . . . . . . . .
4 pa.
M6 washer . . . . ...-.....-..-... 4~~s.
M6 spring washer **-.**--..* 4 PCS.
Tightening torque : 80 - 100 kg-cm
5.8 - 7.2
ft. lbs.
NOTE: Tighten four bolts evenly taking several
steps.
l
The dimensions of the stator bolts are shown in
Table 10-l.
Fig. lo-26
MODEL
1
s
d
RGX1800
65mm
65
mm
25.6 inch 25.6 inch
M8X1.25
RGX2400
75
mm
15mm
29.5 inch 0.59 inch
M8X1.25
RGX3500
85mm
85
mm
(50Hz)
3.35 inch 3.35 inch
M8 x 1.25
RGX5500
115
mm
4.53 inch
40
mm
1.57 inch
Ml0 x 1.5
Table 10-l
- 62 -
