The dimensions of the eUSB (version 2) are based on the following
PCB #s: 1448, 1449

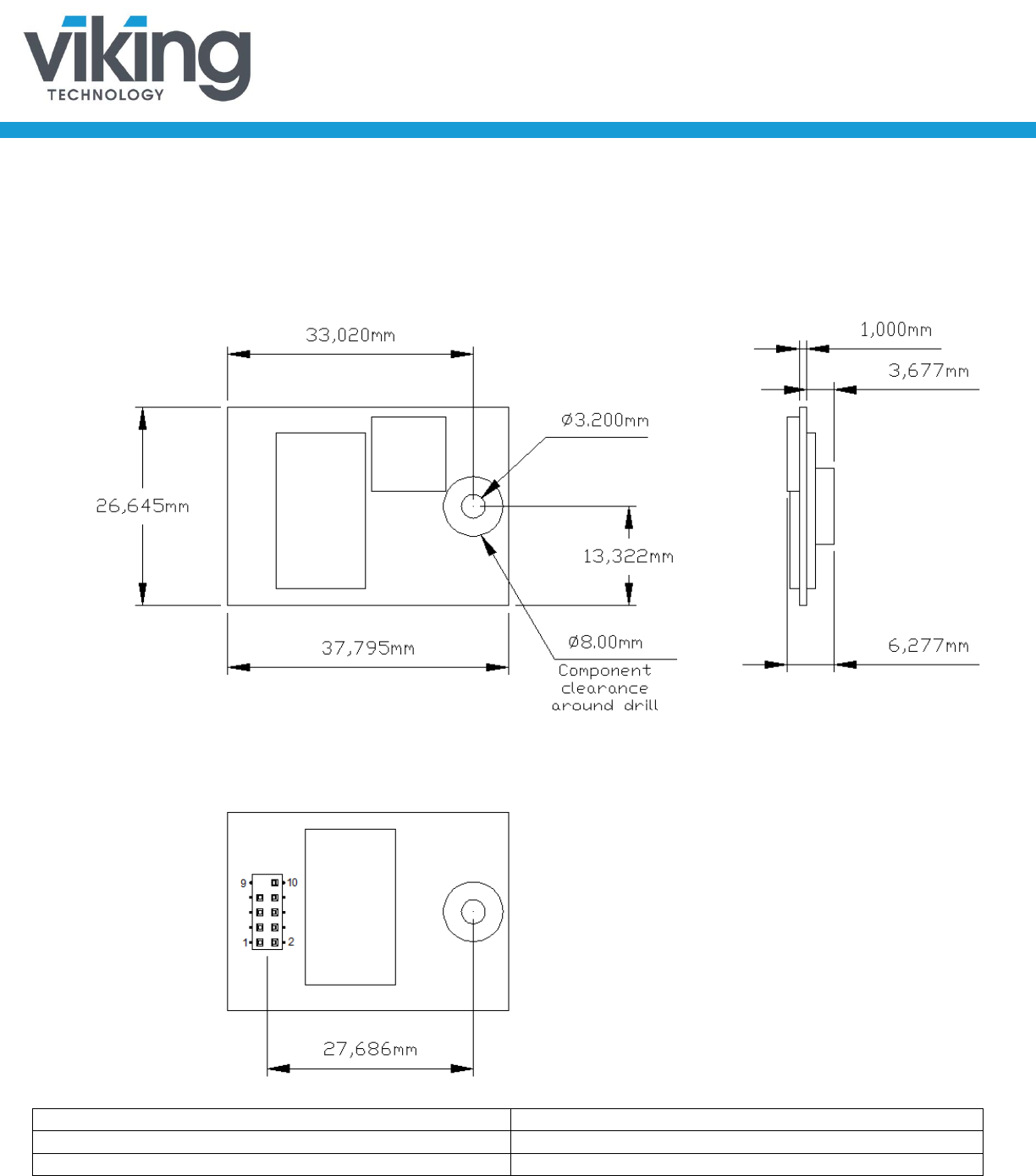

Figure 3-3: Dimensions (Version-2, low profile)
Primary Side
Secondary Side
Side View
Overall
thickness
PCB thickness
(Top View)
(Bottom View)
Low profile Module Connector:
SAMTEC SMM-105-02-F-D-LC-09-P-TR
Pitch: 2.00mm
