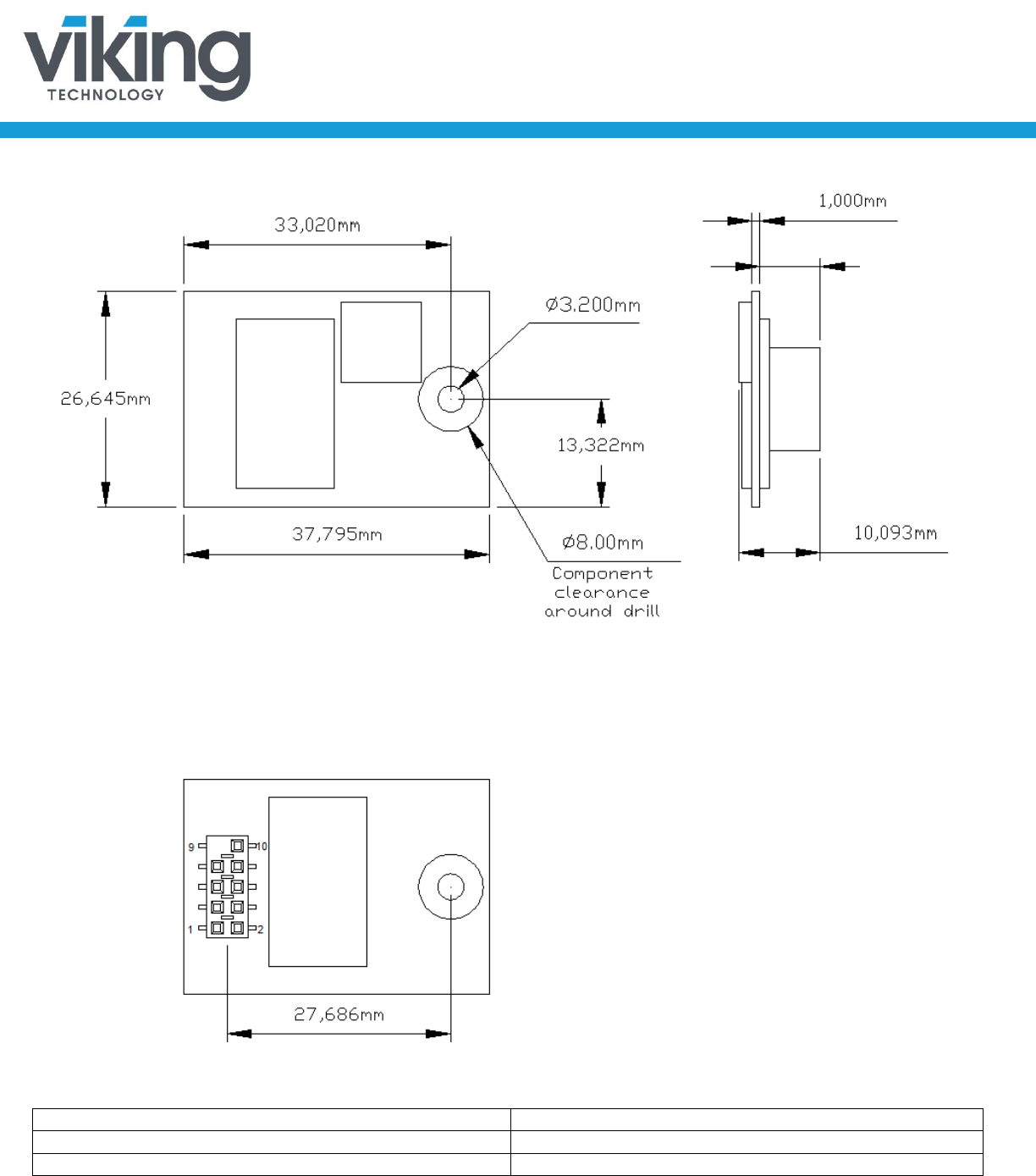

Figure 3-4: Dimensions (Version 2, standard profile)
Primary Side
Secondary Side
Side View
Overall
thickness
PCB thickness
(Top View)
(Bottom View)
Notes:
1. Standard Profile Module Connector:
SAMTEC SSM-105-L-DV-LC-009-P-TR
Pitch: 2.54mm
2. Dimensions shown in millimeters
3. Max screw penetration is 5mm at all 4
locations.
4. The module connector height is
7.4 ± 0.13 [0.290± 0.005]
See Note 4
