Sonar View
Sonar View presents a historical log of sonar returns. The most recent sonar
returns are charted on the right side of the display. As new information is
received, the historical information scrolls left across the display.
• Upper and Lower Depth Range numbers indicate the distance from the
surface of the water to a depth range sufficient to show the bottom.
• Depth is automatically selected to keep the bottom visible on the display,
althoughyoucanadjustitmanually as well(seeSonar X-Press™ Menu).
• Digital Readouts shown on the display will change based on the Select
Readouts settings or the optional-purchase accessories attached (see
Setup Menu Tab: Select Readouts).
• Freeze Frame - Use the 4-WAY Cursor Control key to freeze the display
and move the cursor over asonar return. Thedepth of the sonar return will
be displayed at the bottom of the screen in the cursor dialog box.
NOTE: If the Depth number is flashing, it means that the unit is having trouble
locatingthe bottom. Thisusuallyhappensif the water is too deep,the transduceris
out of the water, the boat is moving too fast, or for any other reason that the unit
can’taccuratelyreceivecontinuousdata.

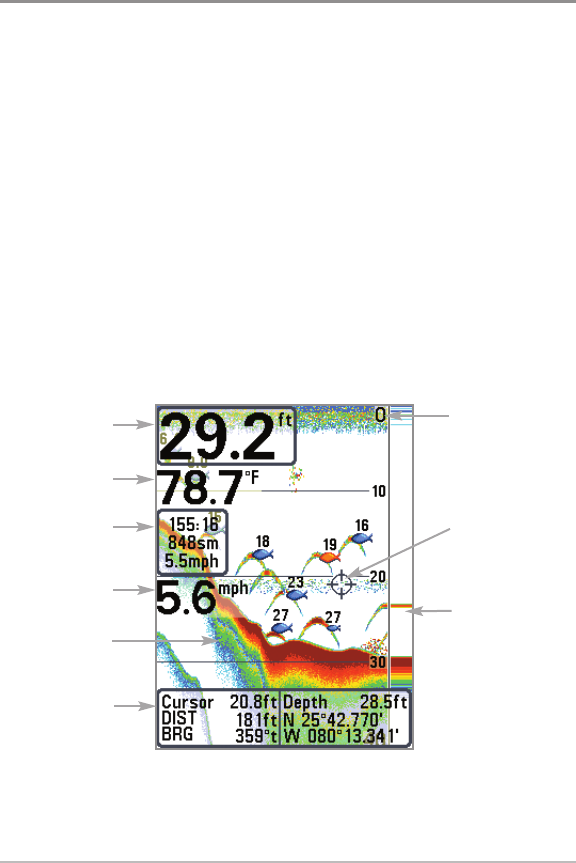

Sonar View
UpperDepth
Range
Speed
SonarHistory
Window
Depth
Cursor
DialogBox
Temperature
Triplog
Cursor
RTSWindow™
Views
