34

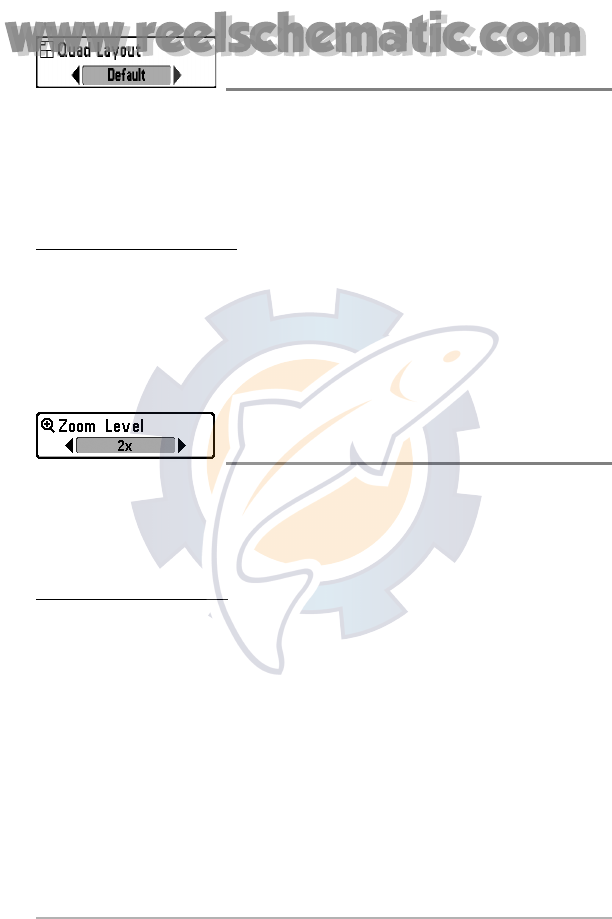

Quad Layout
(575 Fishfinders only, Side Beam View only)
Quad Layout selects the method used to represent the sonar information from
the two side-looking beams plus the down-looking beam to be presented on
the Side Beam View, and is only available on the 575 Fishfinder X-Press™ menu
when the Side Beam View is active. Use Quad Layout to change the way the
Side Beam View is displayed. See Side Beam View for more information.
T
o adjust the Quad Layout:
1. Highlight Quad Layout on the Sonar X-Press™ menu.
2. Use the LEFT or RIGHT 4-Way Cursor Control keys to change the Quad
Layout setting for the Side Beam View. (Default, Classic, Slanted,
Default = Default)
Zoom Level
(Sonar Zoom View only)
Zoom Level sets the magnification level for the Sonar Zoom View, and is only
available on the X-Press™ menu when the Sonar Zoom View is active. Use
Zoom to increase the display resolution to separate sonar returns that are very
close together.
T
o adjust the Zoom Level:
1. Highlight Zoom Level on the Sonar X-Press™ menu.
2. Use the LEFT or RIGHT 4-Way Cursor Control keys to change the Zoom
Level setting for the Sonar Zoom View. (2x, 4x, 6x, 8x, Default = 2x)
NOTE: The Zoom Preview Box tracks the bottom and cannot be moved by the user.
