Side Beam Range
(WideSide® transducer: WideSide® view only)
Side Beam Range sets the deepest range that will be displayed in the
WideSide® View. The range must be set manually to keep the bottom visible on
the display. If the Side Beam Range is set too deep for current depth conditions
the sonar information will become compressed on the display and valuable
detail will be lost. A WideSide® transducer must be connected to the Fishing
System. Side Beam Range menu choice is available when Transducer Select is
set to WideSide® (see Sonar Menu Tab: Transducer Select) and can only be
accessed from the WideSide® view.
NOTE: The Side Beam Range requires the purchase of the WideSide® transducer. You can
visit our website at www.humminbird.com to order this accessory online or contact our
Customer Resource Center at 1-800-633-1468.

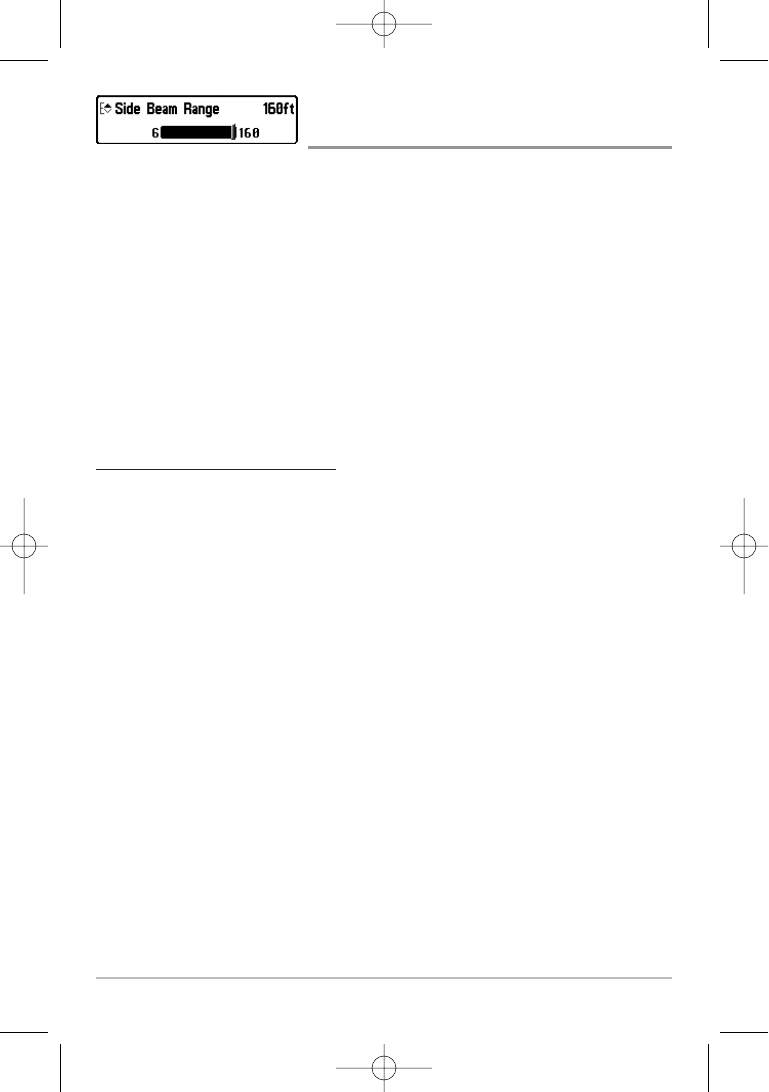

To adjust the Side Beam Range:
1. Make sure you are in WideSide® Transducer Mode and that a
WideSide® transducer is connected, then highlight Side Beam Range
on the Sonar X-Press™ menu.
2. Use the LEFT or RIGHT 4-WAY Cursor Control keys to increase or
decrease the Side Beam Range setting. (6 - 160 feet [2 - 50 meters]
[International Models only], Default = 160 feet [50 meters])
