Rear Panel
Connections
This section describes which cables to connect to a PVS 405D Switcher.
Rear Panel Connectors

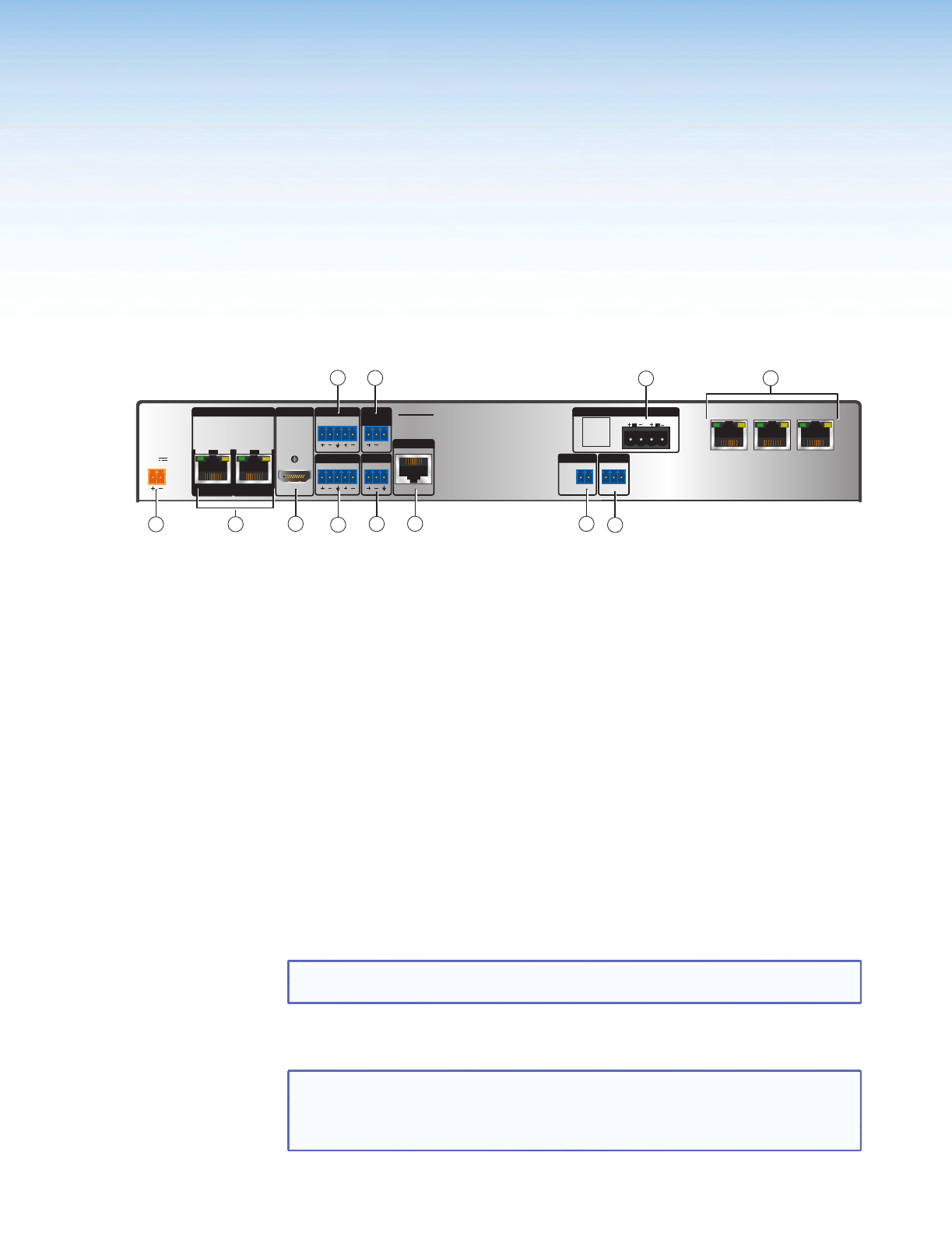

The illustration below shows the rear panel features of the PVS 405D.
LR
DO NOT
GROUND
OR SHORT
SPEAKER
OUTPUTS
4/8
Ω
3A MAX
POWER
12V
HDMI
1/2
SIG LINKSIG LINK
3/4
INPUTS OUTPUT AUDIO OUT
PVS 405D
AMPLIFIED AUDIO OUT
PAGING
SENSOR
PVT IN PVT IN
L
R
AUX OVER PVT REMOTE
VOICELIFT
LAN 1 LAN 2 LAN 3
INPUT 5
+V
L
R
RS-232
Tx Rx
IR
SG G
INPUTS OUTPUT AUDIO OUT AMPLIFIED AUDIO OUT
PVT IN PVT IN
6
7
9
2
1
12
8
10
4
3
5
11
CLASS 2 WIRING
Figure 2. PVS 405D Rear Panel Features
Inputs
a Inputs 1/2 and 3/4 — Connect up to two PVT SW HDMI RGB D or
PVT SW HDMI D wallplates (four input sources) to these two RJ‑45 female
connectors using Shielded Twisted Pair (STP) cable. These four inputs can be up
to four HDMI with embedded audio or two HDMI and two high resolution computer
video and audio sources or any combination of both. The RGB input is digitized at
the PVT input wallplate. The front panel input selection button toggles the inputs 1
through 4 as required. See ”Connector Wiring“ for wiring details.
b Input 5 — Input 5 is a dedicated audio only input for an auxiliary, stereo, line‑level
analog audio signal from an output source such as iPod device or an MP3 player.
Connect a cable from the source to this 5‑pole captive screw connector. It can be
wired as balanced or unbalanced. See ”Connector Wiring“ for wiring details.
c Aux audio port — Connect an aux audio device to this 3.5mm captive screw 3‑pole
connector for dedicated mono audio only input.
d VoiceLift port — This RJ‑45 jack is dedicated for use with the optional VLR 102
VoiceLift Receiver for integration of a VoiceLift Microphone system.
NOTE: To install the VoiceLift Microphone system, see the VoiceLift Installation
Guide, supplied with the device.
e Paging Sensor port — Connect the optional Priority Page Sensor (PPS 35) to this
port, to enable program audio interruptions during paging system broadcasts.
NOTE: The Extron Priority Page Sensor Kit (PPS 35, part #70-1064-01) is an
optional accessory, purchased separately. The switcher also supports the
Priority Page Sensor kit part number 70-619-01. To install a Priority Page Sensor
system, see the relevant installation guide supplied with the device.
PVS 405D Switcher • Rear Panel Connections 4
