4. CONNECTION OF SERVO AMPLIFIER AND SERVO MOTOR
4 - 25
2) For connectors not requiring an open tool (connector E and connector F)
When using solid wire, insert the wire to the end. When using stranded wire, insert the wire to the
end while pushing the release button with a small flat head screwdriver, etc.

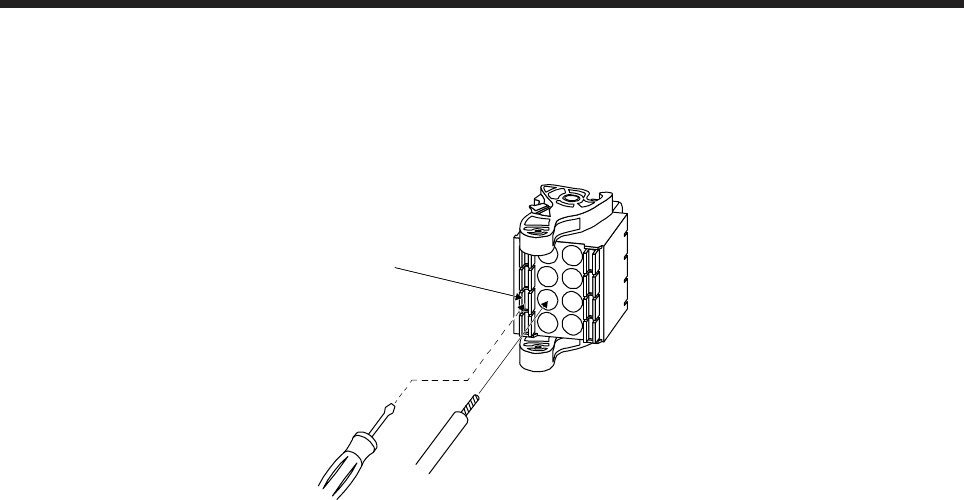

The following shows a connection example of connecting stranded wire to the CNP1 connector.
Release button
Stranded wire
