Operating Instructions
92

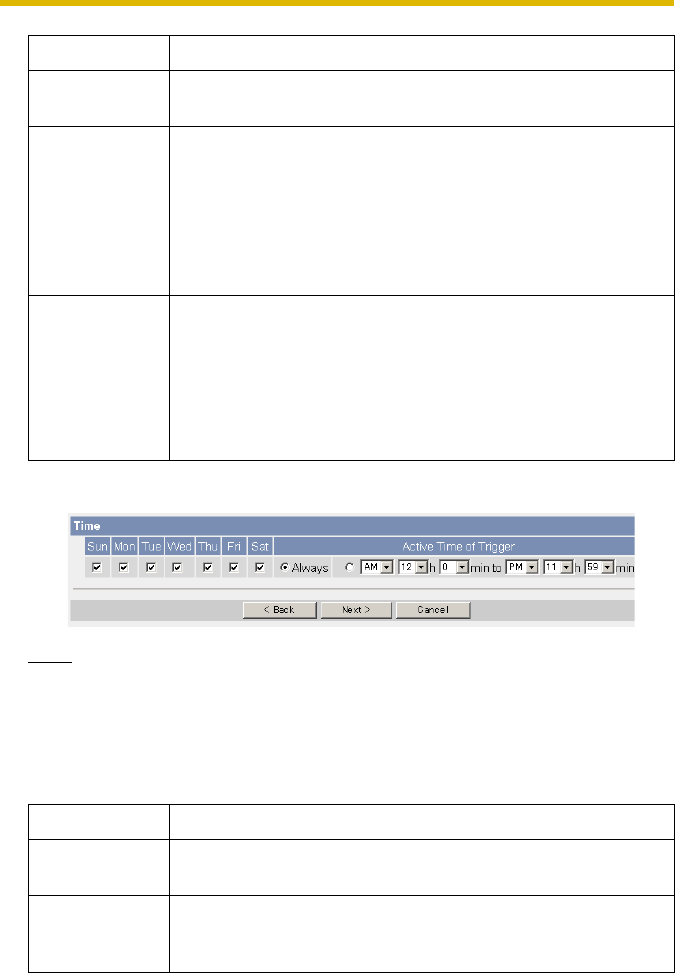

4. Set the time, and click [Next>].
Note
The timer works by an internal clock. Set the date and time before using timer
buffer/transfer (see page
64).
• Clicking [<Back] takes you back to the previous page.
• Clicking [Cancel] takes you back to the Trigger page without saving
changes.
Setting Description
Enable Image
Buffer/Transfer
• Check the box to enable the Trigger setting. Clear the box
to disable it.
Tr i g ger • Selecting [Timer] enables this product to buffer/transfer the
image by timer.
• Selecting [Alarm] enables this product to buffer/transfer the
image by alarm signal.
• Selecting [Motion Detection] enables this product to
capture/transfer the images when the motion detects
something.
Alarm enable
condition
• Selecting the method of the detection for an alarm
connected to the External I/O terminal.
• Select [Rising: GND to Open (High).] or [Falling: Open
(High) to GND.]. [Rising: GND to Open (High).] is the state
that GND pin and pin 1 or pin is left open.
[Falling: Open (High) to GND.] is the state that GND pin
and pin 1 or pin is short-circuited. (See page
143)
Setting Description
A day of the
week
• Check the box to enable the day. Clear the box to disable it.
Active Time of
Tr i g ger
• Select the [Always] option when you do not specify the time
period. If you specify the time period, select the time period
option and set the time period.
