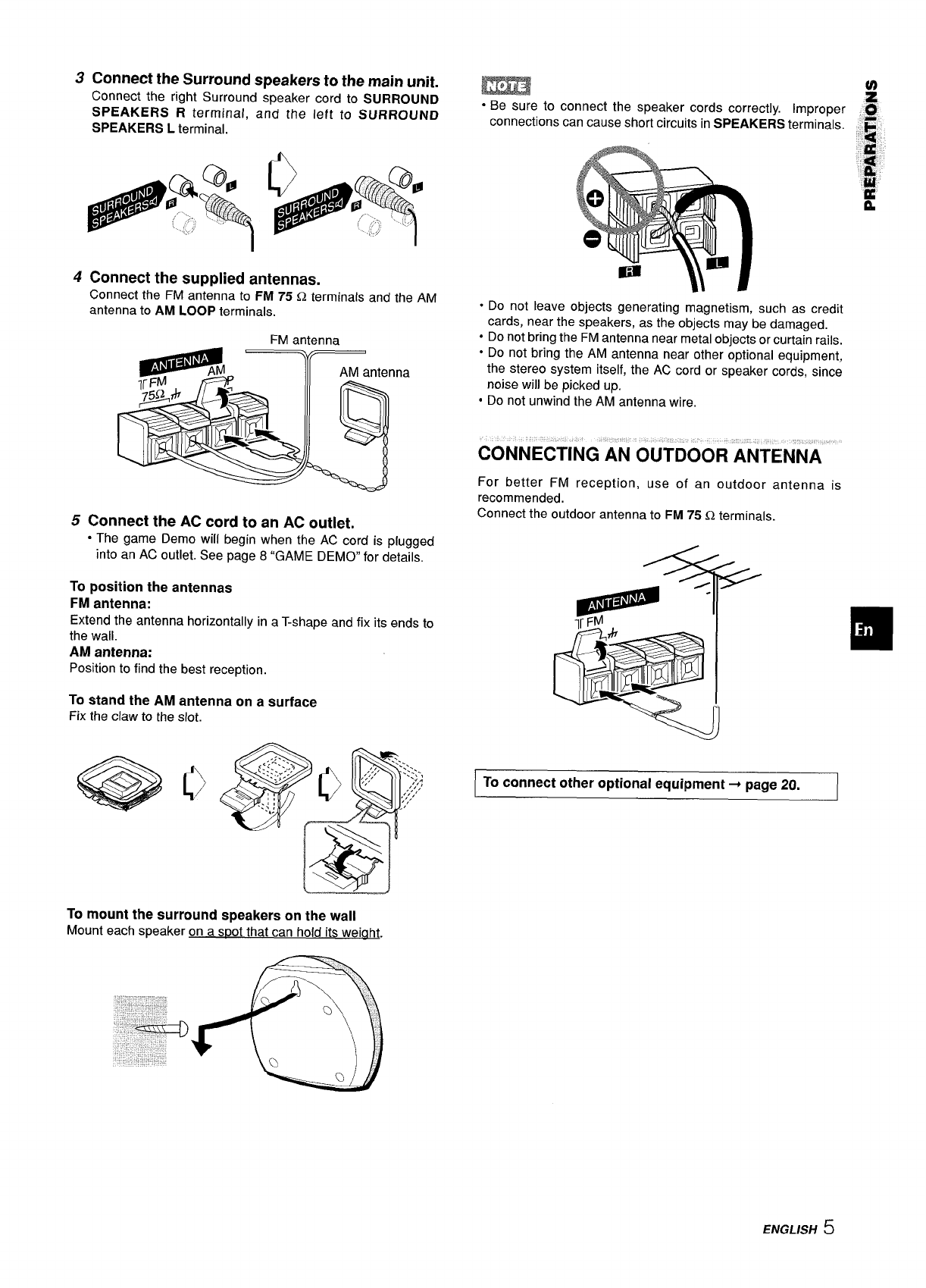

3 Connect the Surround speakers to the main unit.
Connect the right Surround ~peaker cord to SURROUND
SPEAKERS R terminal, and the left to
SURROUND
SPEAKERS L terminal.
4 Connect the supplied antennas.
Connect the FM aritenna to FM 75$2 terminals and the AM
antenna to AM LOOP terminals.
FM antenna
5 Connect the AC cord to an AC outlet.
● The game Demo will begin when the AC cord is plugged
into an AC outlet. See page 8 “GAME DEMO” for details.
To position the antennas
FM antenna:
Extend the antenna horizontally in a T-shape and fix its ends to
the wall.
AM antenna:
Position to find the best reception.
To stand the AM antenna on a surface
Fix the claw to the slot.
\
-/
/
To mount the surround speakers on the wall
“ Be sure to connect the speaker cords correctlv. lmcwo~er ~
connections can cause short circuits in SPEAKERS
● Do not leave objects generating magnetism, such as credit
cards, near the speakers, as the objects may be damaged.
● Do not bring the FM antenna near metal objects or curtain rails.
“ Do not bring the AM antenna near other optional equipment,
the stereo system itself, the AC cord or speaker cords, since
noise will be picked up.
● Do not unwind the AM antenna wire.
CONNECTING AN OUTDOOR ANTENNA
For better FM reception, use of an outdoor antenna is
recommended.
Connect the outdoor antenna to FM 75 Q terminals.
I To connect other optional equipment+ page 20. I
Mount each speaker ~.
ENGLISH 5
