INTERLACED outputs/inputs (ColorStream ®)
Some TVs or monitors are equipped with component video
inputs. Connecting to these inputs allows you to enjoy
higher quality picture playback.
Actual labels for component video inputs may vary
depending on the TV manufacturer. (ex. Y, R-Y, B-Y or Y,
CB, CR)
In some TVs or monitors, the color levels of the playback
picture may be reduced slightly or the tint may change. In
such a case, adjust the TV or monitor for optimum
performance.
PROGRESSIVE outputs/inputs (ColorStreamePro)
Some TVs or monitors are equipped with component video
inputs that are capable of reproducing a progressively
scanned video signal. Connecting to these inputs allows
you to view the highest quality pictures with less flicker.

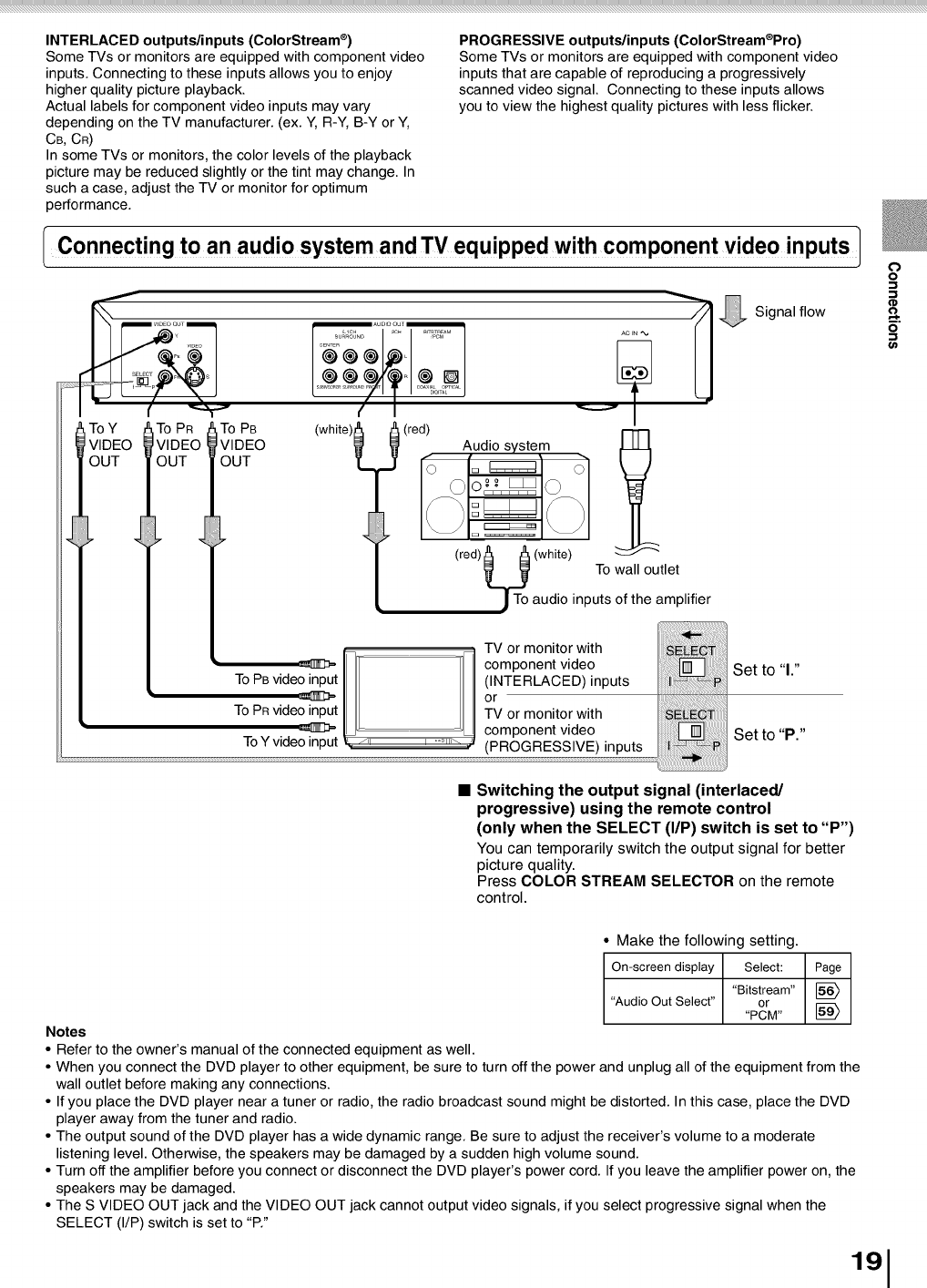

[ Connecting to an audio system and TV equipped with component video inputs ]
bY tToPR
!IDEO lVlDEO I
)UT "OUT "
(red)
_ . Audio stem . _]_
(red)I_1 I_1(white)
___ To wall outlet
) To audio inputs of the amplifier
To PB (white)_
VIDEO
OUT
..... __ Signalflow
Set to "1."
o
O
Set to "P."
• Switching the output signal (interlaced/
progressive) using the remote control
(only when the SELECT (liP) switch is set to "P")
You can temporarilyswitch the outputsignal for better
picture quality.
Press COLOR STREAM SELECTOR on the remote
control.
• Make the following setting.
On-screen display Select: Page
"Bitstream" [_
"AudioOut Select" or
"PCM" [_
Notes
• Refer to the owner's manual of the connected equipment as well.
• When you connect the DVD player to other equipment, be sure to turn off the power and unplug all of the equipment from the
wall outlet before making any connections.
• If you place the DVD player near a tuner or radio, the radio broadcast sound might be distorted. In this case, place the DVD
player away from the tuner and radio.
• The output sound of the DVD player has a wide dynamic range. Be sure to adjust the receiver's volume to a moderate
listening level. Otherwise, the speakers may be damaged by a sudden high volume sound.
• Turn off the amplifier before you connect or disconnect the DVD player's power cord. If you leave the amplifier power on, the
speakers may be damaged.
• The S VIDEO OUT jack and the VIDEO OUT jack cannot output video signals, ifyou select progressive signal when the
SELECT (I/P) switch is set to "P."
