2-2 Receiving & Installation

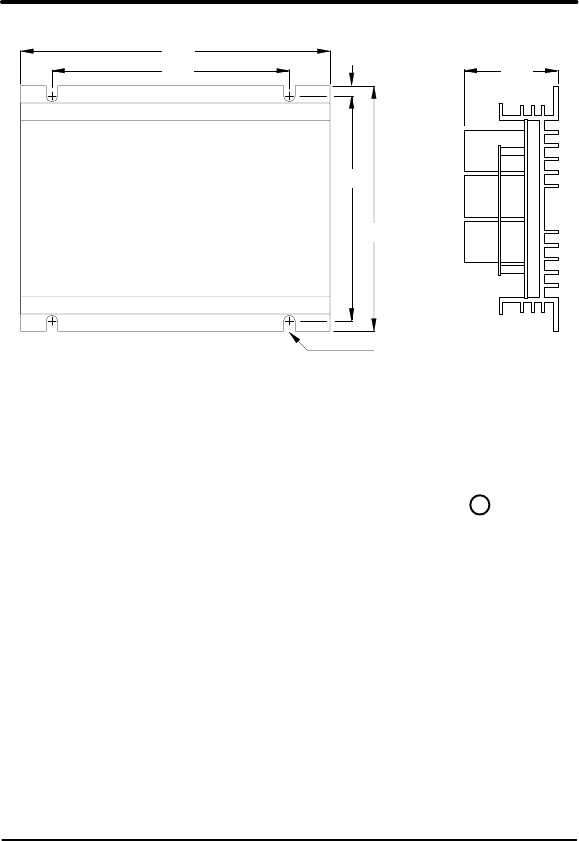

Figure 2-1 Mounting Diagram
6.70
9.00
7.50
6.30
0.20
7
/
32
dia.
(4 places)
2.90
Top View End View
AC Power Connection Refer to Figure 2-2.
A fused 120 VAC power source is required. A 12 AMP fuse should be
used.
1. Be sure the AC source is disconnected (OFF).
2. Be sure the appropriate fuse is installed at the source.
3. Connect the AC power to P1 pins AC and AC.
4. Connect plant earth ground to the chassis connection
+
Speed Potentiometer Refer to Figure 2-2.
1. Rotate the pot fully CCW (Counter clockwise). Measure the
resistance between the wiper and each terminal.
2. Connect the terminal with the most resistance (5KW) to Rmax (P4
pin HI).
3. Connect the terminal with the least resistance (0KW) to Rmin (P4
pin LO).
4. Connect the wiper to Wiper (P4 pin W).
