MAINTENANCE
IMPORTANT
Unplug the power cord before cleaning your system. Also close the
plunger valves on your pool or insert the black hat-like plugs in the
strainer opening to prevent water spillage. After completing all
maintenance tasks, you must plug the power cord back in and open the
plunger valves or remove the plugs.
Flow Sensor Cleaning
1. In a counter-clockwise motion unscrew the collar of the flow sensor (7) and
remove it from the electrolytic cell conduit (6). See “Part Reference”.
2. If deposits and debris are seen on the surface of the flow sensor, then use a
garden hose to wash it off.
3. If flushing with water does not remove the deposits, use a plastic brush to
clean the surface and the hinge if necessary. Do not use a metal brush.
4. After the flow sensor has been inspected and cleaned, align the locator notch
on the flow sensor to the connection ridge in the conduit. Now turn the collar in
a clockwise motion, tightening the sensor back into its position. Do not
overtighten.
Electrolytic Cell Cleaning
The electrolytic cell (6) has a self cleaning function incorporated into the electronic
control's programming. In most cases this self cleaning action will keep the cell
working at optimum efficiency. If the pool water is hard (high mineral content) the
cell may require periodic manual cleaning. To maintain maximum performance, we
recommend that you open and visually inspect the electrolytic cell (6) monthly.
The following steps provide instructions on how to clean your cell.
Inspection and cleaning:
1. Switch off the unit, unplug the power cord from the electrical socket.
2. For filter pumps with 1-1/4” (32mm) hose size - To prevent water from
flowing out of the pool, unscrew the strainer grids from the strainer connectors
and insert the hat-like plugs into the strainer connectors.
For filter pumps with 1-1/2” (38mm) hose size - Grasp a plunger valve
handle. Turn the handle counter-clockwise, push down until it stops and then
turn it clockwise until the plastic protruding notch anchors in the "0/I" position.
Repeat for the second plunger valve. This prevents the water from flowing out
of the pool.

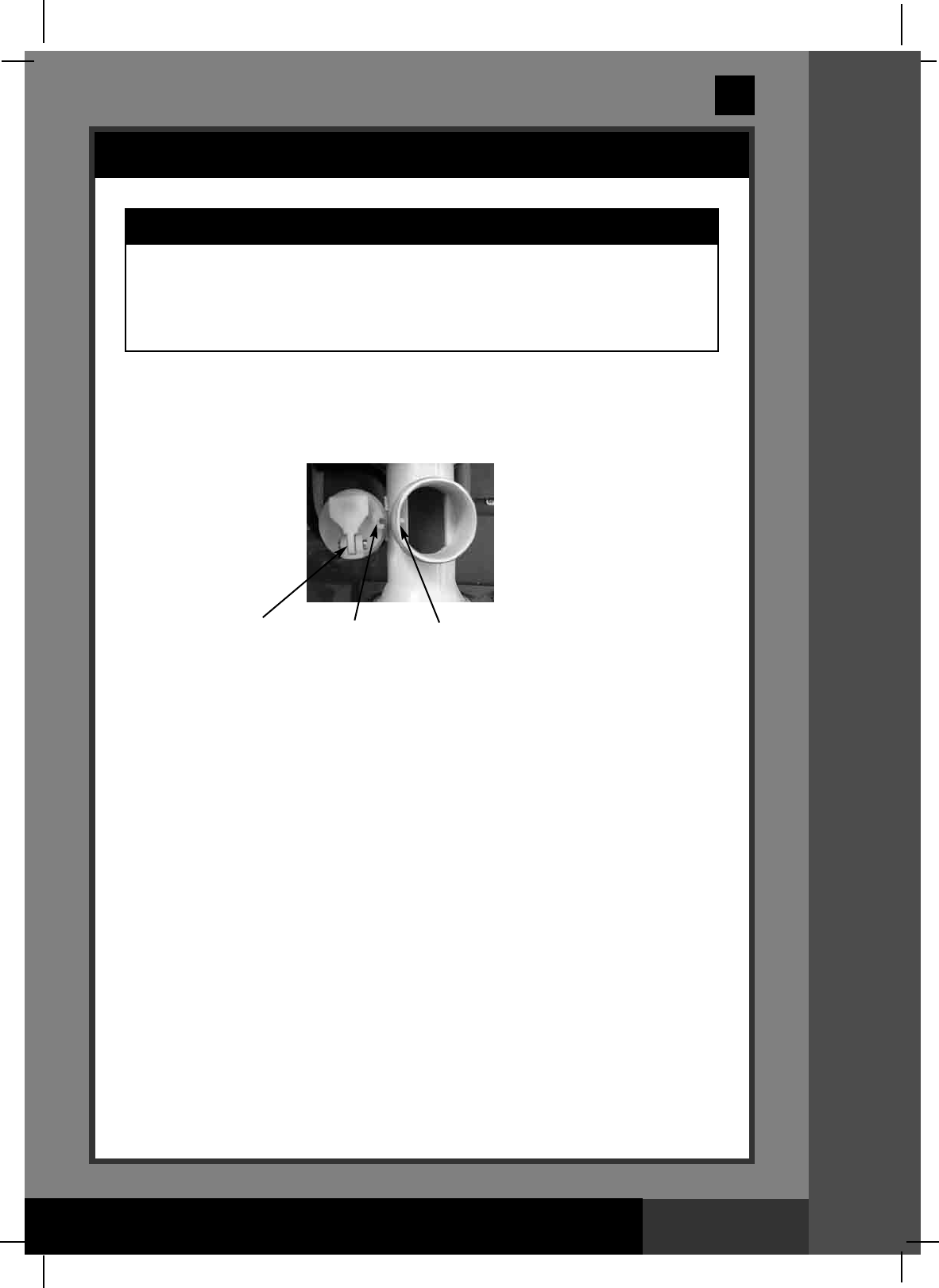

Connection Ridge
Locator Notch
Hinge
