15-2
Setting Distances Between Net Sonde Transmitters
To accurately display the net shooting mark and net sonde mark
position, the distance between transmitters must be correctly set.
This is done on the DATA SET menu.
R1
R0
R2
R0: Length of net from
its end to transmitter1
in meters.
R1: Length of net between
transmitters 1 and 2
in meters.
R2: Length of net between
transmitters 2 and 3
in meters.

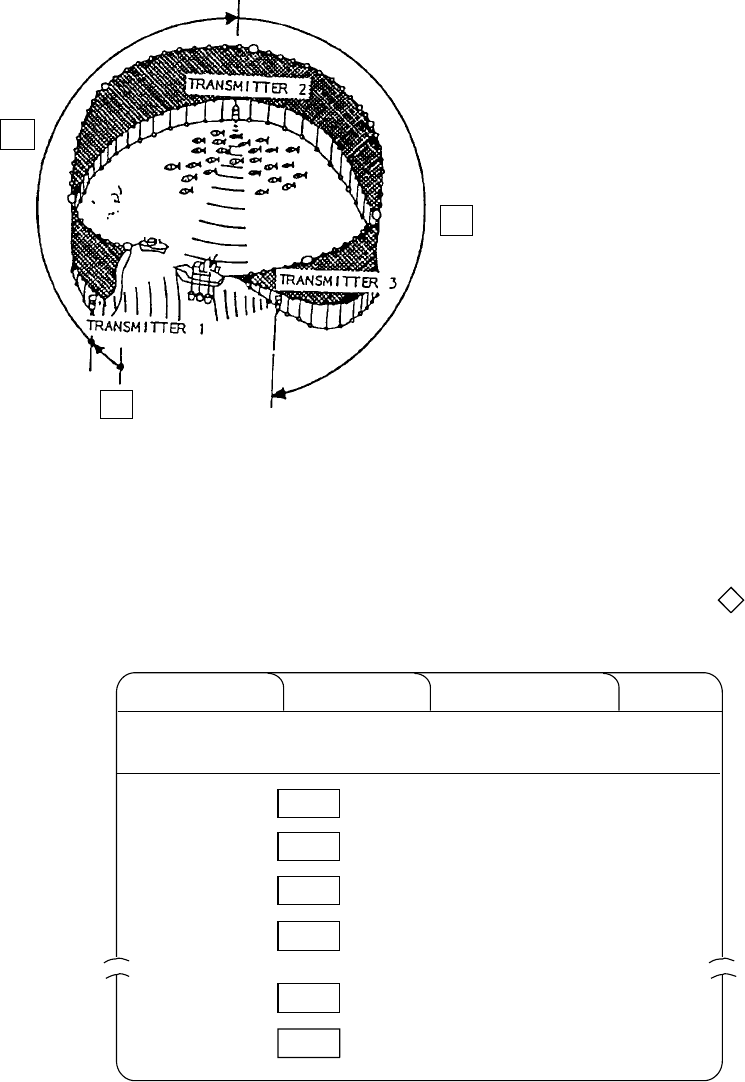

Figure 15-2 How to measure distances between transmitters
How to set net sonde transmitter distances
1. Press the MENU key while pressing and holding down
d
.
The DATA SET menu appears.
DATA SET MENU NET SONDE NET SONDE XMTR
Select item with dc[ \ keys and press MENU key.
Press END key to close menu.
3
0m
0m
0m
0m
0m
Qty
Distance 0
1
2
9
10
:
:
:
:
:
:
t Setting range: 0 to 10 s
t Setting range: 0m to 9990m s
Figure 15-3 DATA SET menu
2. Select NET SONDE and then “Net Sonde XMTR.
3. Enter number of net sonde transmitters and distances between
them.
