Simrad H1000 Marine Instruments User Manual



description/installation
h1000 pilot
Page 26

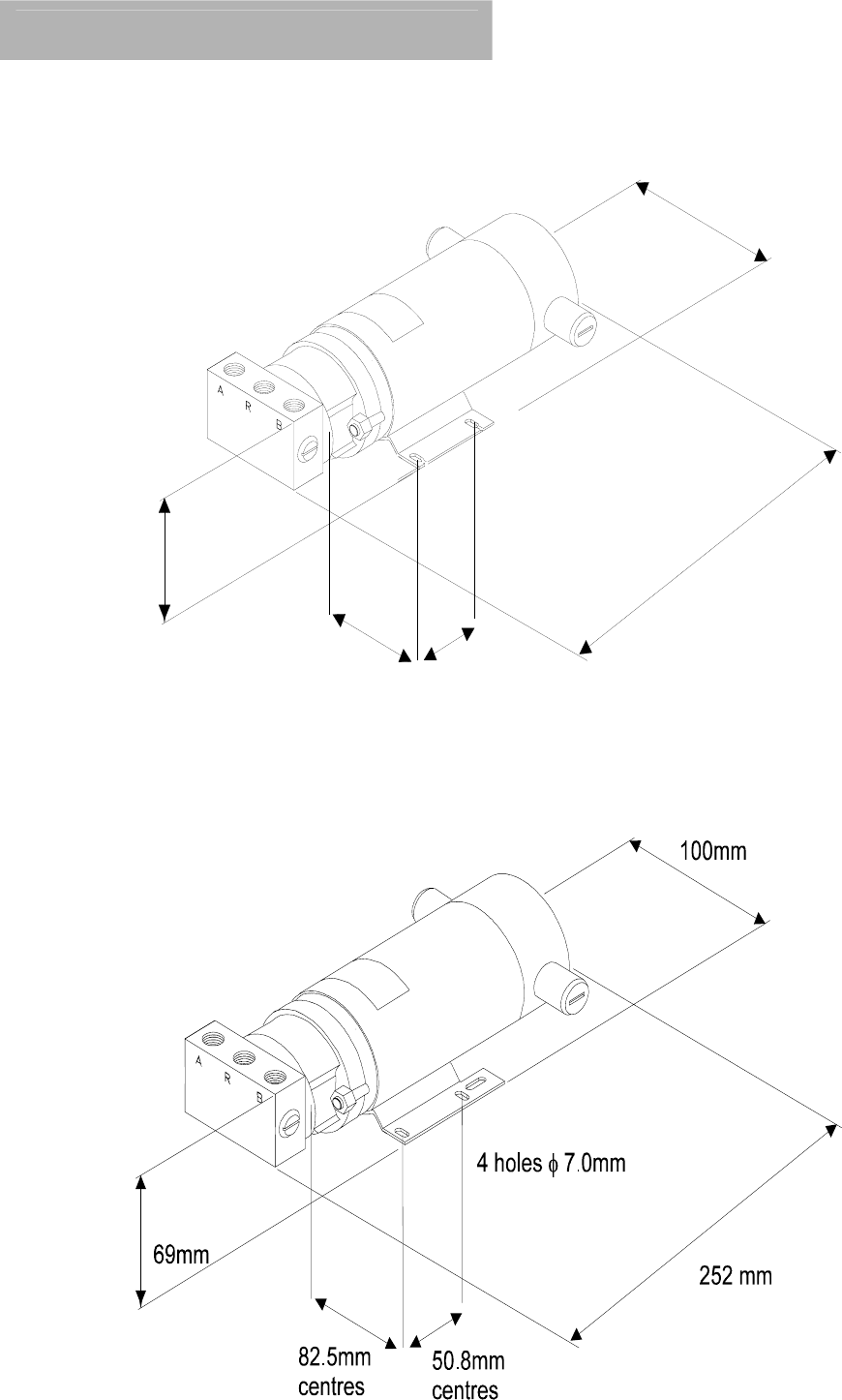

hydraulic drive pump dimensions
type 1 and 2
type 3
88.9mm
(3.5)
centres
50.8mm
(2.00)
centres
4 holes I 7.0mm
(0.28)
240 mm
(9.45)
105mm
(4.13)
80mm
(3.15)
