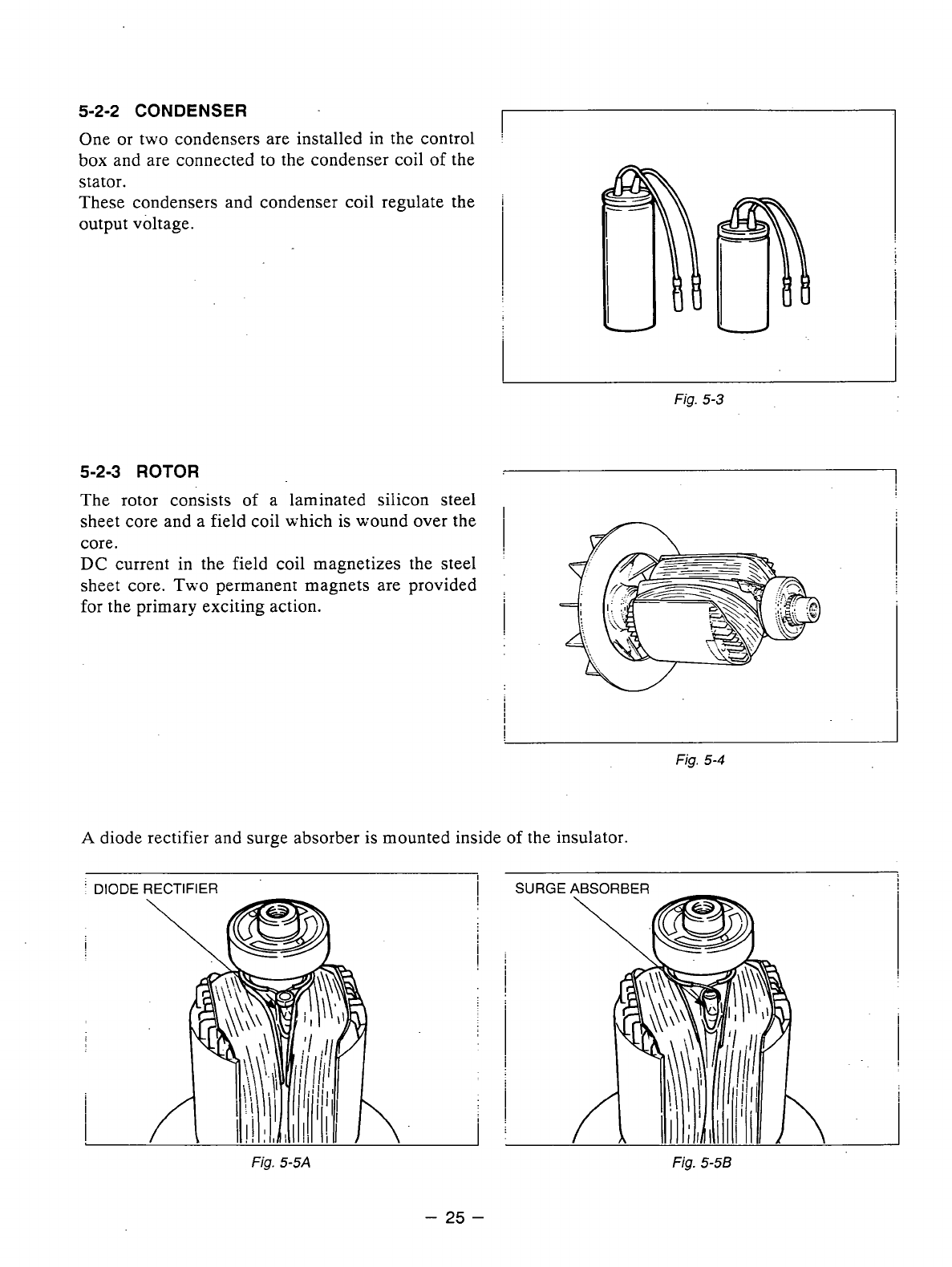

5-2-2

CONDENSER

One or two condensers are installed in the control

box and are connected to the condenser coil of the

stator.

These condensers and condenser coil regulate the

output voltage.

5-2-3

ROTOR

The rotor consists

of

a laminated silicon steel

sheet core and a field coil which

is

wound over the

core.

DC

current in the field coil magnetizes the steel

sheet core. Two permanent magnets are provided

for the primary exciting action.

i

I

I

i

I

I

Fig.

5-3

!

i

1

!

Fig.

5-4

A

diode rectifier and surge absorber is mounted inside of the insulator.

'

DIODE RECTIFIER SURGE

ABSORBER

\.=

Fig.

5-5A

Fig.

5-58

-

25

-
