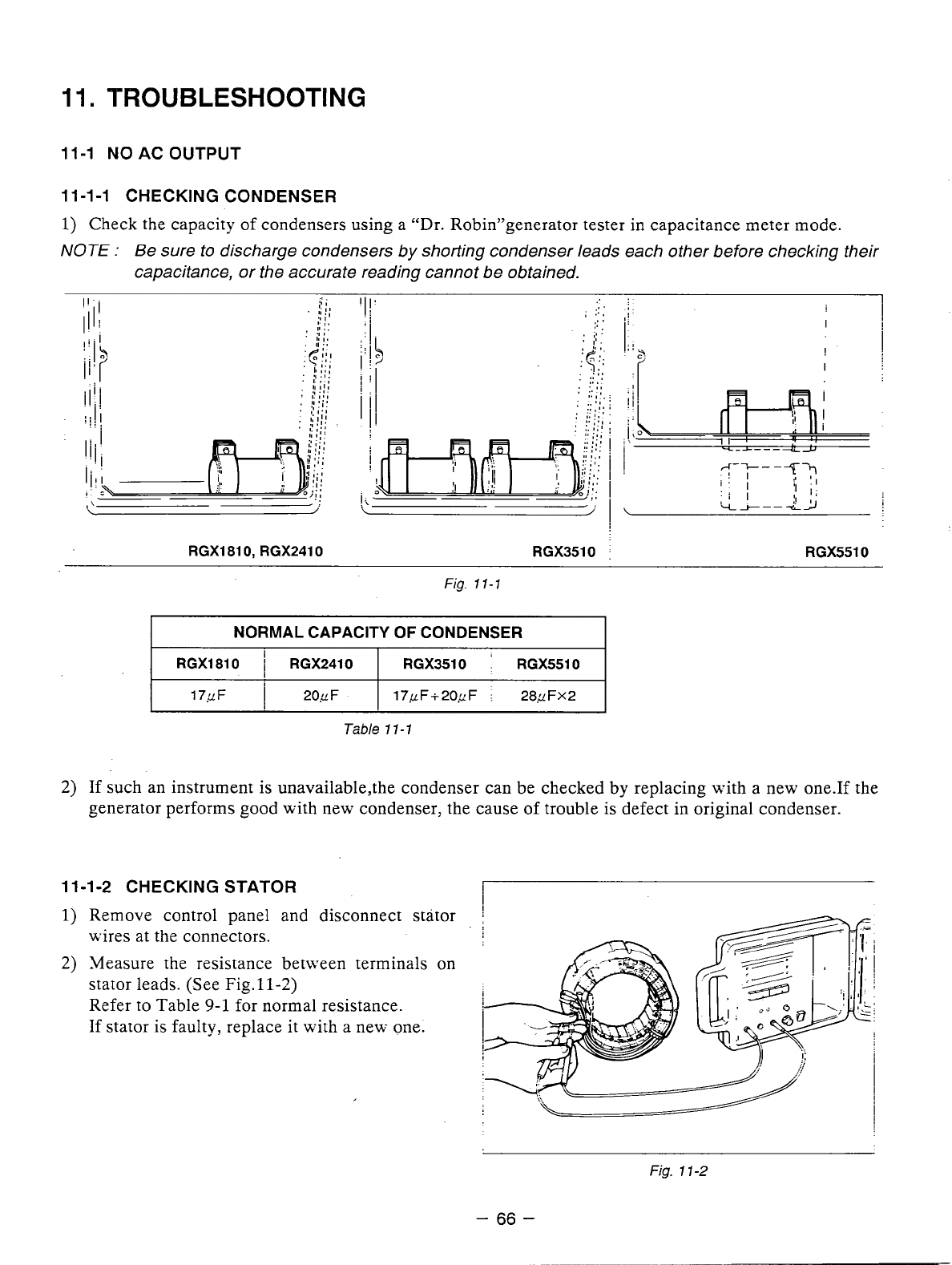

TROUBLESHOOTING

11-1 NO AC OUTPUT

11 -1 -1 CHECKING CONDENSER

1)

Check the capacity

of

condensers using a ”Dr. R0bin”generator tester in capacitance meter mode.

NOTE

:

Be sure to discharge condensers by shorting condenser leads each other before checking their

capacitance, or the accurate reading cannot be obtained.

RGX1810, RGX2410 RGX3510

:

RGX5510

Fig.

11-1

I

NORMAL CAPACITY

OF

CONDENSER

I

RGXl810 RGX2410 RGX3510 RGX5510

17yF

1

20yF

17,cF+20yF

:

28,zFX2

i

I

Tzble

11-1

2)

If such an instrument is unavailable,the condenser can be checked by replacing with a new one.If the

v

generator performs good with new condenser: the cause of trouble is defect in original condenser.

11-1-2 CHECKING STATOR

1)

Remove control panel and disconnect stator

wires at the connectors.

2)

Measure the resistance between terminals on

stator leads. (See Fig.11-2)

Refer to Table

9-1

for normal resistance.

If

stator is faulty, replace it with a new one.

Fig.

1

1-2

-
